Interpump HYPACK Hydraulically Driven Pumps
<
1 of 2
>
Part No: E1D1835I-HY8
- 180 Bar max water pressure
- 13.5 Lpm max water flow
- 6.3Hp, 4.63kW @ 2800Rpm
- 26.5Lpm, 130Bar oil @ 2800Rpm
- 8.5cm³/rev oil displacement
- 1/2"BSPF water inlet

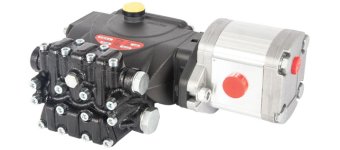

Part No: E1B1614I-HY8
- 160 Bar max water pressure
- 14 Lpm max water flow
- 5.8Hp, 4.26kW @ 1450Rpm
- 13.5Lpm, 230Bar oil @ 1450Rpm
- 8.5cm³/rev oil displacement
- 1/2"BSPF water inlet
Part No: E1B1614I-HY14
- 160 Bar max water pressure
- 14 Lpm max water flow
- 5.8Hp, 4.26kW @ 1450Rpm
- 22.5Lpm, 140Bar oil @ 1450Rpm
- 14cm³/rev oil displacement
- 1/2"BSPF water inlet

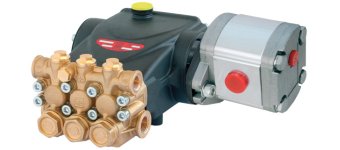

Part No: E2C2016I-HY14
- 200 Bar max water pressure
- 16 Lpm max water flow
- 8.3Hp, 6.10kW @ 1750Rpm
- 27.0Lpm, 140Bar oil @ 1750Rpm
- 14cm³/rev oil displacement
- 1/2"BSPF water inlet

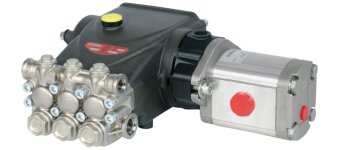

Part No: E3B2515I-HY26
- 250 Bar max water pressure
- 15/20 Lpm max water flow
- 9.7Hp, 7.13kW @ 1450Rpm
- 13.1Hp, 9.63kW @ 1950Rpm
- 42.0Lpm, 130Bar oil @ 1450Rpm
- 56.5Lpm, 130Bar oil @ 1950Rpm
Part No: E3B2121I-HY26
- 210 Bar max water pressure
- 21 Lpm max water flow
- 11.5Hp, 8.46kW @ 1450Rpm
- 42.0Lpm, 150Bar oil @ 1450Rpm
- 26cm³/rev oil displacement
- 1/2"BSPF water inlet

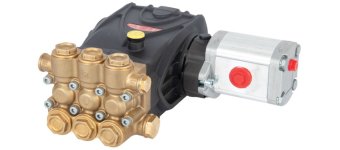

Part No: WS1630I-HY26
- 150 Bar max water pressure
- 30/36 Lpm max water flow
- 11.7Hp, 8.60kW @ 1450Rpm
- 14.1Hp, 10.37kW @ 1750Rpm
- 42.0Lpm, 150Bar oil @ 1450Rpm
- 50.5Lpm, 150Bar oil @ 1750Rpm

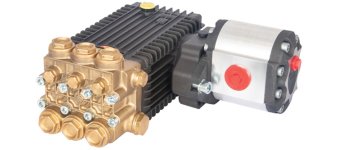

Part No: W1550I-HY26
- 90 Bar max water pressure
- 50 Lpm max water flow
- 11.7Hp, 8.60kW @ 1450Rpm
- 42.0Lpm, 150Bar oil @ 1450Rpm
- 26cm³/rev oil displacement
- 3/4"BSPF water inlet
Part No: W1555I-HY37
- 140 Bar max water pressure
- 55 Lpm max water flow
- 20Hp, 14.9kW @ 1450Rpm
- 60.4Lpm, 180Bar oil @ 1450Rpm
- 37.5cm³/rev oil displacement
- 3/4"BSPF water inlet
Part No: T1750I-HY37
- 175 Bar max water pressure
- 50 Lpm max water flow
- 22.7Hp, 16.9kW @ 1750Rpm
- 65Lpm, 180Bar oil @ 1750Rpm
- 37.5cm³/rev oil displacement
- 3/4"BSPF water inlet
Part No: T2040I-HY37
- 200 Bar max water pressure
- 40 Lpm max water flow
- 21Hp, 15.4kW @ 1750Rpm
- 65Lpm, 170Bar oil @ 1750Rpm
- 37.5cm³/rev oil displacement
- 3/4"BSPF water inlet
Part No: T2535I-HY37
- 250 Bar max water pressure
- 35 Lpm max water flow
- 22Hp, 16.2kW @ 1750Rpm
- 65Lpm, 180Bar oil @ 1750Rpm
- 37.5cm³/rev oil displacement
- 3/4"BSPF water inlet
<
