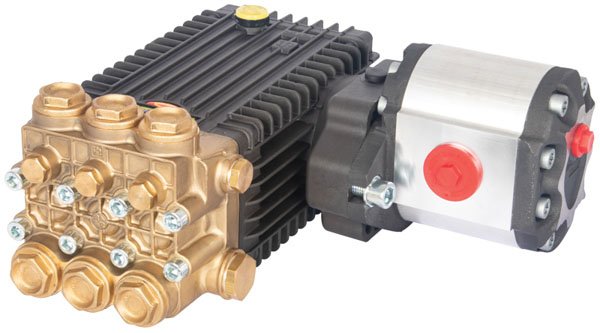

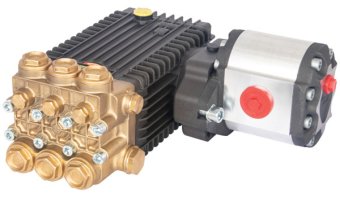

Interpump T2535 Hydraulic Motorpump Unit

Interpump T2535 Hydraulic Motorpump Unit

Part No: T2535I-HY37

  • 250 Bar max water pressure
  • 35 Lpm max water flow
  • 22Hp, 16.2kW @ 1750Rpm
  • 65Lpm, 180Bar oil @ 1750Rpm
  • 37.5cm³/rev oil displacement
  • 3/4"BSPF water inlet
  • 3/8"BSPF water outlet
  • 1"BSPF hydraulic inlet/outlet
  • 3/8"BSPF hydraulic bypass port

Associated Products

Interpump 66 Series Pump - 1750 Rpm

Interpump 66 Series Pump - 1750 Rpm

Part No:
T2535I

  • 250 Bar
  • 35 Lpm

Pratissoli RPM Counter

Pratissoli RPM Counter

Part No:
ZRPM1

  • 12/24 Volt DC

Piston 20x54mm

Piston 20x54mm

Part No:
66.0400.09

    Interpump Service/Repair Kit 169

    Interpump Service/Repair Kit 169

    Part No:
    KIT169

    • 6x suction/delivery valves (36.7127.01)

    Interpump Service/Repair Kit 170

    Interpump Service/Repair Kit 170

    Part No:
    KIT170

    • 3x 20mm water seal sets

    Interpump Service/Repair Kit 171

    Interpump Service/Repair Kit 171

    Part No:
    KIT171

    • 1x complete 20mm seal assembly

    Interpump Service/Repair Kit 2

    Interpump Service/Repair Kit 2

    Part No:
    KIT2

    • 3x oil seals 22x32x5mm

    Interpump Pump Oil

    Interpump Pump Oil

    Part No:
    ZOIL

    • SAE 15W/40 pump oil
    • 1 Litre

    Interpump Pump Rail Kit

    Interpump Pump Rail Kit

    Part No:
    209-1051

    • For 47-66-69-75 series pumps
