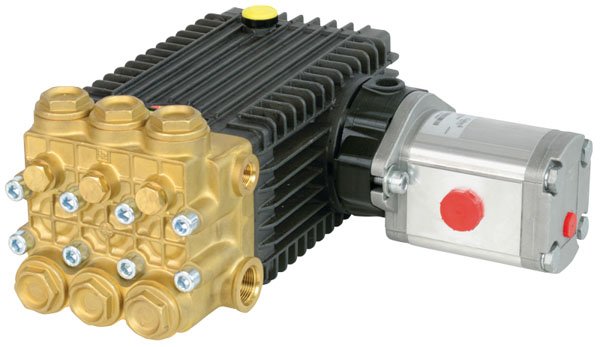

Interpump W1550 Hydraulic Motorpump Unit

Interpump W1550 Hydraulic Motorpump Unit

Part No: W1550I-HY26

  • 90 Bar max water pressure
  • 50 Lpm max water flow
  • 11.7Hp, 8.60kW @ 1450Rpm
  • 42.0Lpm, 150Bar oil @ 1450Rpm
  • 26cm³/rev oil displacement
  • 3/4"BSPF water inlet
  • 3/8"BSPF water outlet
  • 3/4"BSPF hydraulic inlet/outlet
  • 1/4"BSPF hydraulic bypass port

Associated Products

Interpump 66 Series Pump - 1450 Rpm

Interpump 66 Series Pump - 1450 Rpm

Part No:
W1550I

  • 90 Bar
  • 50 Lpm

Pratissoli RPM Counter

Pratissoli RPM Counter

Part No:
ZRPM1

  • 12/24 Volt DC

Interpump Pump Oil

Interpump Pump Oil

Part No:
ZOIL

  • SAE 15W/40 pump oil
  • 1 Litre

Interpump Service/Repair Kit 248

Interpump Service/Repair Kit 248

Part No:
KIT248

  • 3x 28mm water seal sets

Interpump Service/Repair Kit 247

Interpump Service/Repair Kit 247

Part No:
KIT247

  • 1x complete 28mm seal assembly

Interpump Service/Repair Kit 2

Interpump Service/Repair Kit 2

Part No:
KIT2

  • 3x oil seals 22x32x5mm

Interpump Service/Repair Kit 169

Interpump Service/Repair Kit 169

Part No:
KIT169

  • 6x suction/delivery valves (36.7127.01)

Piston 28x54mm

Piston 28x54mm

Part No:
66.0410.09

    Interpump Pump Rail Kit

    Interpump Pump Rail Kit

    Part No:
    209-1051

    • For 47-66-69-75 series pumps

    IPH Galtech 2SM 260 Hydraulic Motor

    IPH Galtech 2SM 260 Hydraulic Motor

    Part No:
    95.1070.00

    • 26cc displacement
    • Bi-Directional

    Oil Seal

    Oil Seal

    Part No:
    699-1187

    • Suitable for hyd. motor shaft
    • 18x30x7
