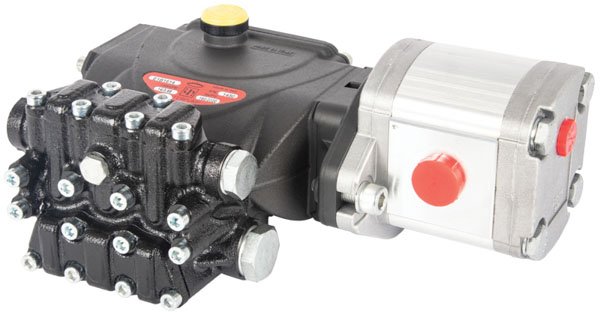

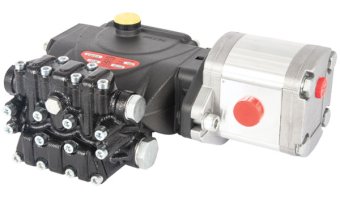

Interpump E1B1835 Hydraulic Motorpump Unit

Interpump E1B1835 Hydraulic Motorpump Unit

Part No: E1D1835I-HY8

  • 180 Bar max water pressure
  • 13.5 Lpm max water flow
  • 6.3Hp, 4.63kW @ 2800Rpm
  • 26.5Lpm, 130Bar oil @ 2800Rpm
  • 8.5cm³/rev oil displacement
  • 1/2"BSPF water inlet
  • 3/8"BSPF water outlet
  • 1/2"BSPF hydraulic inlet/outlet
  • 1/4"BSPF hydraulic bypass port

Associated Products

Interpump 53 Series Pump - 2800 Rpm

Interpump 53 Series Pump - 2800 Rpm

Part No:
E1D1835I

  • 180 Bar
  • 13.5 Lpm

Interpump 53 Series HYPACK MPU w/ Valve & Filter

Interpump 53 Series HYPACK MPU w/ Valve & Filter

Part No:
H500-1000

  • 180 Bar max pressure
  • 13.5 Lpm max flow

Interpump Pump Oil

Interpump Pump Oil

Part No:
ZOIL

  • SAE 15W/40 pump oil
  • 1 Litre

Interpump Pump Rail Kit

Interpump Pump Rail Kit

Part No:
209-1050

  • For 44-50-53-58-59-60-63-C2W-C3W series pumps

Oil Seal

Oil Seal

Part No:
699-1187

  • Suitable for hyd. motor shaft
  • 18x30x7

IPH Galtech 2SM 080 Hydraulic Motor

IPH Galtech 2SM 080 Hydraulic Motor

Part No:
95.1050.00

  • 8cc displacement
  • Bi-Directional
