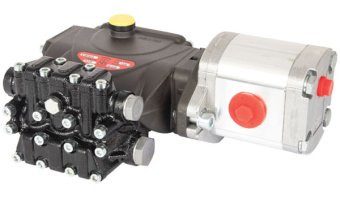

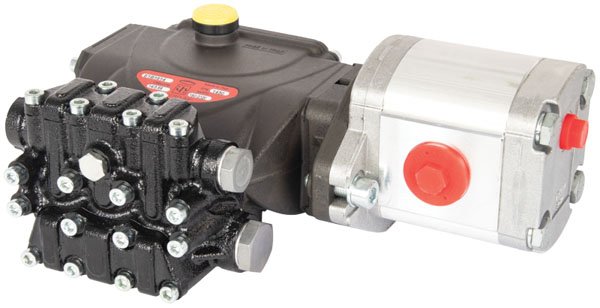

Interpump E1B1614 Hydraulic Motorpump Unit

Interpump E1B1614 Hydraulic Motorpump Unit

Part No: E1B1614I-HY14

  • 160 Bar max water pressure
  • 14 Lpm max water flow
  • 5.8Hp, 4.26kW @ 1450Rpm
  • 22.5Lpm, 140Bar oil @ 1450Rpm
  • 14cm³/rev oil displacement
  • 1/2"BSPF water inlet
  • 3/8"BSPF water outlet
  • 3/4"BSPF hydraulic inlet/outlet
  • 1/4"BSPF hydraulic bypass port
