Safety Valves

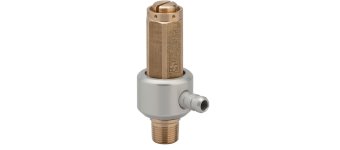

Part No: S284
- 50-300 Bar pressure*
- 7-41 Lpm flow
- 85°C max water temperature
- Brass construction
- Not preset, see manual
- 3/8" male inlet

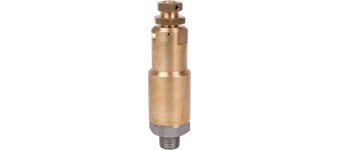

Part No: S3
- 60-700 Bar pressure
- 10-100 Lpm flow*
- 60°C max water temperature
- Brass body - St.steel internals
- Not preset, see manual
- 1/2"BSPM inlet

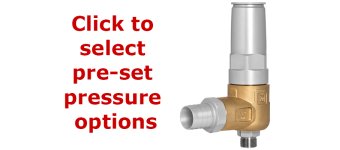

Part No: S455
- 70-450 Bar pressure
- 80-600 Lpm flow*
- 85°C max water temperature
- Factory set & sealed*
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals
Part No: SX3
- 60-300 Bar pressure
- 80-500 Lpm flow*
- 200 Hp, 147 kW max system power
- AISI316 stainless steel
- Factory set & sealed*
- NOT PED certified

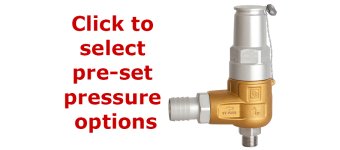

Part No: S723
- 50-700 Bar pressure
- 15-230 Lpm flow*
- 85°C max water temperature
- Factory set & sealed*
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals

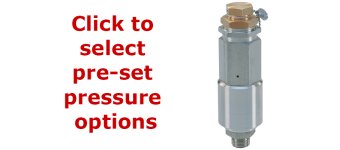

Part No: SX2
- 60-600 Bar pressure
- 15-190 Lpm flow*
- 81.5 Hp, 60 kW max system power
- AISI316 stainless steel
- Factory set & sealed*
- NOT PED certified

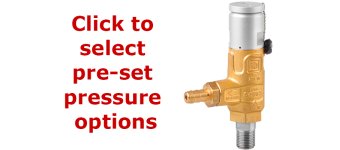

Part No: S1503
- 600-1500 Bar pressure
- 10-30 Lpm flow*
- 30°C max water temperature
- Factory set & sealed*
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals

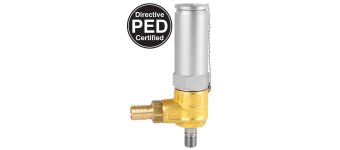

Part No: S1510
- 400-1500 Bar pressure
- 20-135 Lpm flow*
- 30°C max water temperature
- Factory set & sealed to order*
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals

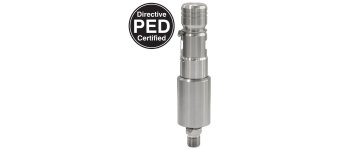

Part No: S1520
- 400-1500 Bar pressure
- 40-241 Lpm flow*
- 30°C max water temperature
- Factory set & sealed to order*
- PED certified to 97/23/CE cat. II
- St.steel construction
Part No: SV12
- 640-1800 Bar pressure
- 12-100 Lpm flow
- 30°C max water temperature
- Stainless steel construction
- Factory set & sealed to order
- 1/2"BSPM inlet

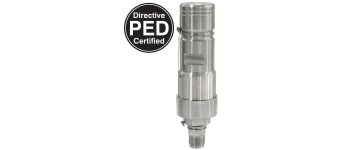

Part No: S4090
- 70-400 Bar pressure
- 150-950 Lpm flow*
- 85°C max water temperature
- Factory set & sealed to order*
- PED certified to 97/23/CE cat. II
- Stainless steel construction
