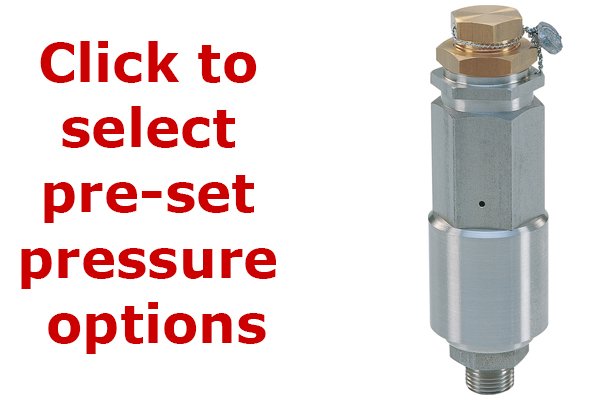

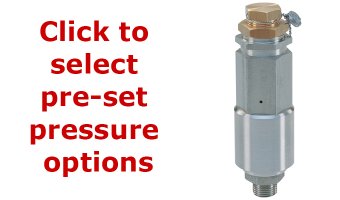

Pratissoli SX3 Safety Relief Valve - AISI 316
Part No: SX3
- 60-300 Bar pressure
- 80-500 Lpm flow*
- 200 Hp, 147 kW max system power
- AISI316 stainless steel
- Factory set & sealed*
- NOT PED certified
- 60°C max water temperature
- 3/4"BSPM inlet
- Call sales office for installation advice
Product Information
*Maximum flow is dependant on pre-set pressure. Select valve for required system pressure from the below Associated/Alternative Products or see User Manual for full range of options.
Associated Products
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/130
- Factory set for 130 Bar system pressure
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/160
- Factory set for 160 Bar system pressure
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/300
- Factory set for 300 Bar system pressure
Alternative Products
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/130
- Factory set for 130 Bar system pressure
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/160
- Factory set for 160 Bar system pressure
Pratissoli SX3 Safety Relief Valve - AISI 316
Part No:
SX3/300
- Factory set for 300 Bar system pressure
