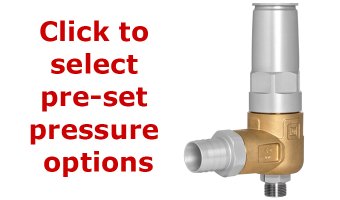

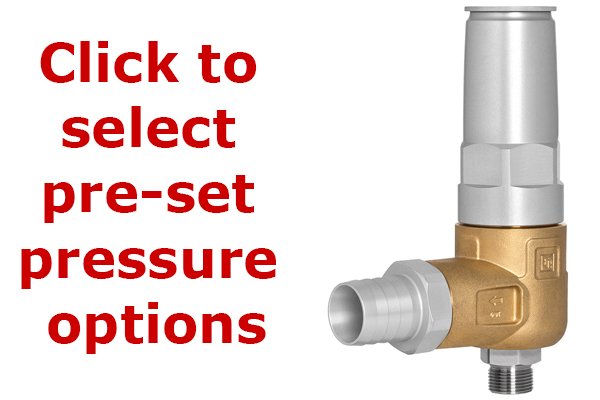

Pratissoli S455 Certified Safety Relief Valve

Pratissoli S455 Certified Safety Relief Valve

Part No: S455

  • 70-450 Bar pressure
  • 80-600 Lpm flow*
  • 85°C max water temperature
  • Factory set & sealed*
  • PED certified to 97/23/CE cat. II
  • Brass body - St.steel internals
  • 3/4"BSPM inlet
  • 36mm hose barb bypass
  • Call sales office for installation advice

Product Information

*Maximum flow is dependant on pre-set pressure. Select valve for required system pressure from the below Associated/Alternative Products or see User Manual for full range of options.

These valves are PED certified, each valve is issued with a dedicated certificate with a unique serial number affixed to the valve and manual. Generic calibration certificates cannot be supplied.
