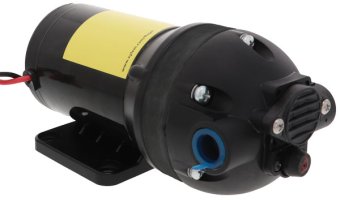

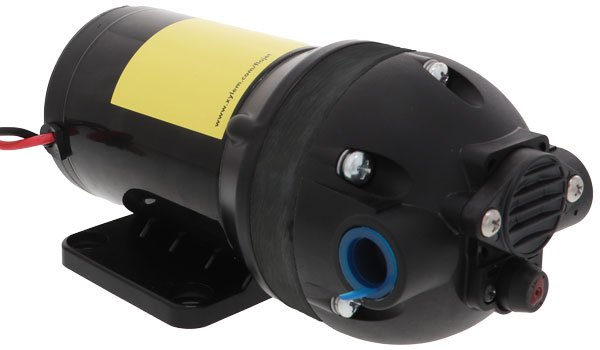

Flojet NextGen Triplex Series Bypass Pump - 12V
Part No: T151F-31N7-1P
- 3.4 Bar bypass
- 5.7 Lpm max flow
- No pressure switch
- 12 Volt DC, 4.5 amps
- Santoprene diaphragm
- EPDM check valve
- 3/8"NPTF ports
- Self-priming, up to 2.4m
- 4 to 60°C fluid temperature
- Internal bypass w/ integrated back flow preventer
- Glass filled polypropylene pump housing
Product Information
Flojet's NextGen Triplex series industrial diaphragm pumps have been developed to replace the long-established Duplex II range - a trusted industry benchmark for industrial and commercial pumping applications.
Designed for durability, reliability, and long service life, the self-priming Flojet NextGen Triplex pumps are ideal for a wide range of fluid handling applications, including liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Their compact design, efficient performance, and quiet operation make them suitable for agricultural, industrial, commercial, and OEM applications.
Manufactured to Flojet's high engineering standards, these industrial diaphragm pumps deliver dependable performance with low maintenance requirements, even in demanding operating conditions.
Features
- Robust pump design with sealed motor for increased durability
- Long-life co-injection moulded diaphragm technology
- Efficient and quiet operation
- TENV permanent magnet motors with thermal overload protection
