Flojet Triplex Series Bypass Pumps

Flojet NextGen Triplex Series Bypass Pump - 12V
Flojet NextGen Triplex Series Bypass Pump - 12V
Part No: T151F-31N7-1P
  • 3.4 Bar bypass
  • 5.7 Lpm max flow
  • No pressure switch
  • 12 Volt DC, 4.5 amps
  • Santoprene diaphragm
  • EPDM check valve
Flojet NextGen Triplex Series Bypass Pump - 12V
Flojet NextGen Triplex Series Bypass Pump - 12V
Part No: T151F-36N7-1P
  • 3.4 Bar bypass
  • 5.7 Lpm max flow
  • No pressure switch
  • 12 Volt DC, 4.5 amps
  • Santoprene diaphragm
  • Viton check valve
Flojet NextGen Triplex Series Bypass Pump - 12V
Flojet NextGen Triplex Series Bypass Pump - 12V
Part No: T201F-31N7-1P
  • 3.4 Bar bypass
  • 7.6 Lpm max flow
  • No pressure switch
  • 12 Volt DC, 7.5 amps
  • Santoprene diaphragm
  • EPDM check valve
Flojet NextGen Triplex Series Bypass Pump - 12V
Flojet NextGen Triplex Series Bypass Pump - 12V
Part No: T201F-36N7-1P
  • 3.4 Bar bypass
  • 7.6 Lpm max flow
  • No pressure switch
  • 12 Volt DC, 7.5 amps
  • Santoprene diaphragm
  • Viton check valve

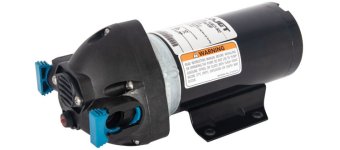

Flojet Triplex Compact Series Bypass Pump - 12V
Flojet Triplex Compact Series Bypass Pump - 12V
Part No: R3B21502A
  • 3.4 Bar bypass setting
  • 6.4 Lpm max flow
  • No pressure switch
  • 12 Volt DC, 4.0 Amps
  • Santoprene diaphragm
  • Viton check valve

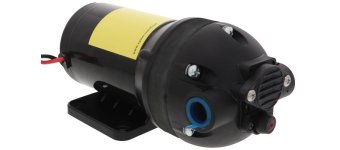

Flojet NextGen Triplex Series Bypass Pump - 24V
Flojet NextGen Triplex Series Bypass Pump - 24V
Part No: T152F-31N7-1P
  • 3.4 Bar bypass
  • 5.7 Lpm max flow
  • No pressure switch
  • 24 Volt DC, 2.5 amps
  • Santoprene diaphragm
  • EPDM check valve
Flojet NextGen Triplex Series Bypass Pump - 24V
Flojet NextGen Triplex Series Bypass Pump - 24V
Part No: T152F-36N7-1P
  • 3.4 Bar bypass
  • 5.7 Lpm max flow
  • No pressure switch
  • 24 Volt DC, 2.5 amps
  • Santoprene diaphragm
  • Viton check valve
