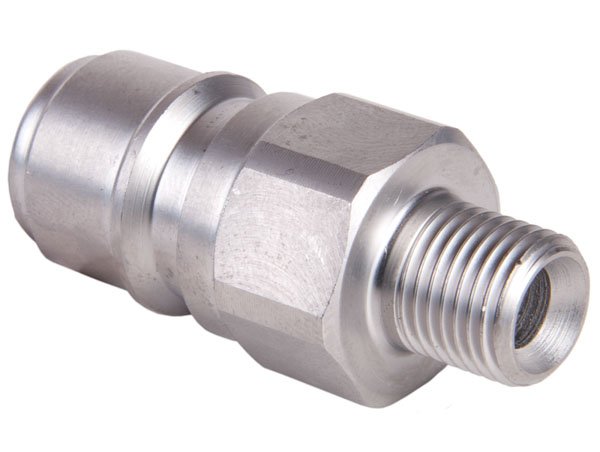

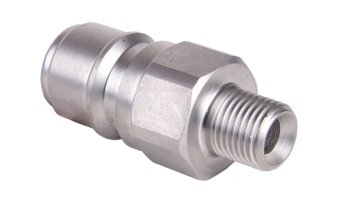

ARS350 QR Adaptor - St.Steel

ARS350 QR Adaptor - St.Steel

Part No: 26.2048.51

  • 3/8"BSPM thread
  • 350 Bar rated pressure
  • 50 Lpm max flow
  • 90°C rated temperature
  • Stainless steel
  • ø19.9mm plug - ø12mm internal bore
  • Compatible w/ ARS220/350 & AR31 couplers

Associated Products

ARS220 QR Coupler

ARS220 QR Coupler

Part No:
26.2030.00

  • 3/8"BSPF thread
  • 220 Bar rated pressure

ARS220 QR Coupler

ARS220 QR Coupler

Part No:
26.2030.80

  • M22x1.5F thread
  • 220 Bar rated pressure

ARS350 QR Coupler - St.Steel

ARS350 QR Coupler - St.Steel

Part No:
26.2050.25

  • 1/4"BSPM thread
  • 350 Bar rated pressure

ARS350 QR Coupler - St.Steel

ARS350 QR Coupler - St.Steel

Part No:
26.2050.20

  • 1/4"BSPF thread
  • 350 Bar rated pressure

ARS350 QR Coupler - St.Steel

ARS350 QR Coupler - St.Steel

Part No:
26.2050.00

  • 3/8"BSPF thread
  • 350 Bar rated pressure
