02-Suppliers & Applications » Products by Supplier » Interpump Products » Interpump Valves & Accessories »

Interpump M22 Swivel Couplings

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB14M

1/4"BSPM thread
M22x1.5F thread coupler
210 Bar max pressure
40 Lpm max flow
140°C max temperature
Internal swivel - 14mm pin

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB14F

1/4"BSPF thread
M22x1.5F thread coupler
210 Bar max pressure
40 Lpm max flow
140°C max temperature
Internal swivel - 14mm pin

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB38M

3/8"BSPM thread
M22x1.5F thread coupler
210 Bar max pressure
40 Lpm max flow
140°C max temperature
Internal swivel - 14mm pin

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB38F

3/8"BSPF thread
M22x1.5F thread coupler
210 Bar max pressure
40 Lpm max flow
140°C max temperature
Internal swivel - 14mm pin

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB12M

1/2"BSPM thread
M22x1.5F thread coupler
210 Bar max pressure
40 Lpm max flow
140°C max temperature
Internal swivel - 14mm pin

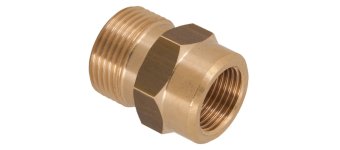

M22 Adaptor

M22 Adaptor

Part No: ZINA14M

1/4"BSPM thread
M22x1.5M thread
250 Bar max pressure
40 Lpm max flow
160°C max temperature
14mm pin

M22 Adaptor

M22 Adaptor

Part No: ZINA14F

1/4"BSPF thread
M22x1.5M thread
250 Bar max pressure
40 Lpm max flow
160°C max temperature
14mm pin

M22 Adaptor

M22 Adaptor

Part No: ZINA38M

3/8"BSPM thread
M22x1.5M thread
250 Bar max pressure
40 Lpm max flow
160°C max temperature
14mm pin

M22 Adaptor

M22 Adaptor

Part No: ZINA38F

3/8"BSPF thread
M22x1.5M thread
250 Bar max pressure
40 Lpm max flow
160°C max temperature
14mm pin
