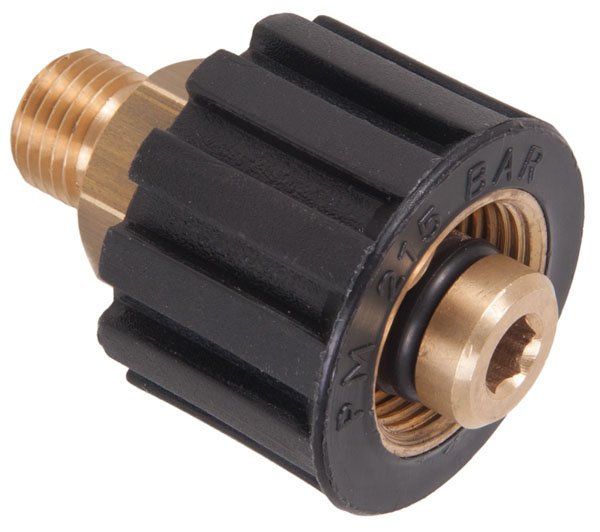

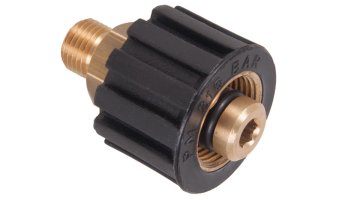

M22 Swivel Coupler

M22 Swivel Coupler

Part No: ZINB14M

  • 1/4"BSPM thread
  • M22x1.5F thread coupler
  • 210 Bar max pressure
  • 40 Lpm max flow
  • 140°C max temperature
  • Internal swivel - 14mm pin
  • Brass body & viton o-ring
  • Shockproof plastic grip
  • Compatible with M22M adaptors

Associated Products

M22 Male Connector

M22 Male Connector

Part No:
26.0055.00

  • M22M x M22M threads

O Ring 2.62x9.13 (109) SPEC

O Ring 2.62x9.13 (109) SPEC

Part No:
90.3820.00

  • For ZINB fitting

Anti Extrusion Ring 9.6x14x1.5

Anti Extrusion Ring 9.6x14x1.5

Part No:
90.5052.00

    M22 Adaptor

    M22 Adaptor

    Part No:
    M22A12F

    • 1/2"BSPF thread
    • M22x1.5M thread

    M22 Male Connector

    M22 Male Connector

    Part No:
    M22AM22

    • M22M x M22M threads

    M22 Adaptor

    M22 Adaptor

    Part No:
    ZINA14F

    • 1/4"BSPF thread
    • M22x1.5M thread

    M22 Adaptor

    M22 Adaptor

    Part No:
    ZINA14M

    • 1/4"BSPM thread
    • M22x1.5M thread

    M22 Adaptor

    M22 Adaptor

    Part No:
    ZINA38F

    • 3/8"BSPF thread
    • M22x1.5M thread

    M22 Adaptor

    M22 Adaptor

    Part No:
    ZINA38M

    • 3/8"BSPM thread
    • M22x1.5M thread

    Alternative Products

    M22 Coupler

    M22 Coupler

    Part No:
    M22B14M

    • 1/4"BSPM thread
    • M22x1.5F thread coupler
