09-Fluid Handling Components » Couplings & Connectors » Quick Release Couplings - Up to 350 Bar »

AR2 & ARS250 Series QR Couplings

< 2 of 2 >
ARS250 QR Coupler
ARS250 QR Coupler
Part No: 26.2010.30
  • 1/2"BSPF thread
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Nickel plated brass body
  • NBR O rings

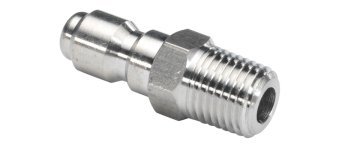

ARS250 QR Adaptor
ARS250 QR Adaptor
Part No: 26.2023.61
  • 3/8"BSPM thread
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Nickel plated steel
  • ø15mm plug - ø8.5mm internal bore
ARS250 QR Adaptor
ARS250 QR Adaptor
Part No: 26.2024.61
  • 1/2"BSPM thread
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Nickel plated steel
  • ø15mm plug - ø8.5mm internal bore

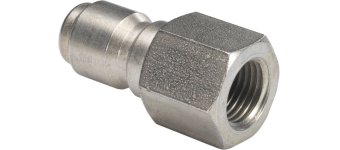

ARS250 QR Adaptor
ARS250 QR Adaptor
Part No: 26.2016.61
  • 1/4"BSPF thread
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Nickel plated steel
  • ø15mm plug - ø8.5mm internal bore
ARS250 QR Adaptor
ARS250 QR Adaptor
Part No: 26.2015.61
  • 3/8"BSPF thread
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Nickel plated steel
  • ø15mm plug - ø8.5mm internal bore
< 2 of 2 >
