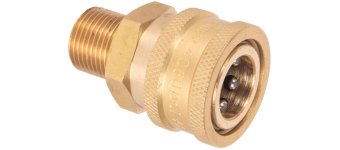

AR2 & ARS250 Series QR Couplings
<
1 of 2
>
Part No: 0212002320
- 3/8"BSPM thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Brass body
- ø15mm plug
Part No: 0212002340
- M22 male thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Brass body
- ø15mm plug
Part No: 0212002300
- 3/8"BSPF thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Brass body
- ø15mm plug
Part No: 85.300.115
- 3/8"NPTF thread
- 275 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Brass body, st/steel sleeve
- ø15mm plug
Part No: 85.300.103S
- 3/8"NPTF thread
- 275 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Stainless steel body
- ø15mm plug
Part No: 0121730060
- 3/8"BSPM thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Plated steel
- ø15mm plug
Part No: 85.300.105
- 3/8"NPTM thread
- 275 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Plated steel
- ø15mm plug
Part No: 0121730200
- 1/4"BSPF thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Plated steel
- ø15mm plug
Part No: 0121730090
- 3/8"BSPF thread
- 250 Bar rated pressure
- 40 Lpm max flow
- 90°C rated temperature
- Plated steel
- ø15mm plug
Part No: 26.2010.00
- 3/8"BSPM thread
- 250 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Nickel plated brass body
- NBR O rings
Part No: 26.2010.20
- 1/4"BSPF thread
- 250 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Nickel plated brass body
- NBR O rings
Part No: 26.2010.10
- 3/8"BSPF thread
- 250 Bar rated pressure
- 30 Lpm max flow
- 90°C rated temperature
- Nickel plated brass body
- NBR O rings
<
