High Pressure Connection Hoses
<
2 of 2
>
Part No: 503-2011
- 1m - 1 wire rubber hose
- Blue non-scuff construction
- 250 Bar max pressure
- 1/2"BSPF thread port
- 1/2"BSPM thread port
- Rated to 155°C
Part No: 503-2013
- 1m - 2 wire rubber hose
- Blue non-scuff construction
- 400 Bar max pressure
- 1/2"BSPF thread port
- 1/2"BSPM thread port
- Rated to 155°C

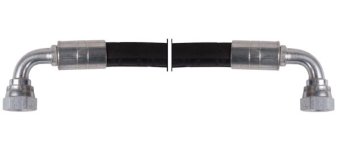

Part No: 399-1023
- 1180mm - 2 wire rubber hose
- 400 Bar rated pressure
- 2x 3/8"BSPF thread 90° ports
- 150°C max temperature
- 795 Bar test pressure
- 1320 Bar burst pressure
Part No: 503-1022
- 1730mm - 2 wire rubber hose
- 400 Bar rated pressure
- 2x 3/8"BSPF thread 90° ports
- 150°C max temperature
- 795 Bar test pressure
- 1320 Bar burst pressure
Part No: 503-1023
- 1730mm - 2 wire rubber hose
- 400 Bar rated pressure
- 1x 3/8"BSPF thread 90° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature
- 795 Bar test pressure

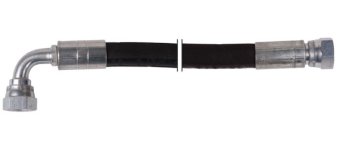

Part No: 503-1048
- 400mm - 1 wire rubber hose
- 280 Bar rated pressure
- 1x 1/2"BSPF thread 90° port
- 1x 1/2"BSPF thread straight port
- 155°C max temperature
- 420 Bar test pressure

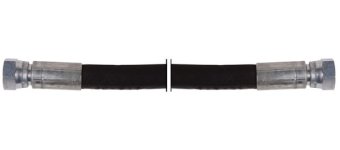

Part No: 503-1061
- 400mm - 1 wire rubber hose
- 280 Bar rated pressure
- 2x 1/2"BSPF thread straight ports
- 155°C max temperature
- 420 Bar test pressure
- 650 Bar burst pressure
<
