High Pressure Connection Hoses
Part No: BP1
- 330mm - 1 wire rubber hose
- 210 Bar rated pressure
- 1x 3/8"BSPF thread 90° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature
- 435 Bar test pressure
Part No: BP2
- 355mm - 1 wire rubber hose
- 250 Bar rated pressure
- 2x 3/8"BSPF thread straight ports
- 150°C max temperature
- 435 Bar test pressure
- 720 Bar burst pressure

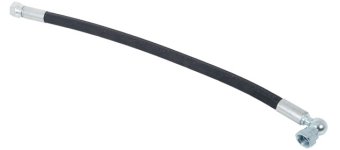

Part No: 503-1043
- 380mm - 1 wire rubber hose
- 250 Bar rated pressure
- 1x 3/8"BSPF thread 90° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature

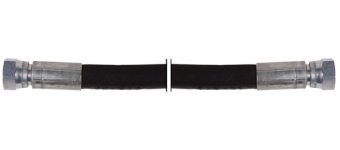

Part No: 503-1053
- 400mm - 1 wire rubber hose
- 250 Bar rated pressure
- 2x 3/8"BSPF thread straight ports
- 150°C max temperature
- 435 Bar test pressure
- 720 Bar burst pressure

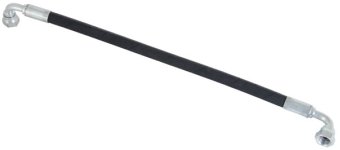

Part No: 503-1038
- 480mm - 2 wire rubber hose
- 400 Bar rated pressure
- 2x 3/8"BSPF thread 90° ports
- Ports @ 0° & 270°
- 150°C max temperature
- 795 Bar test pressure

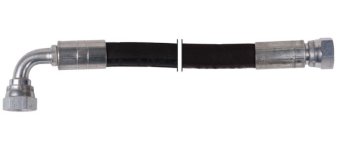

Part No: 503-1039
- 500mm - 2 wire rubber hose
- 400 Bar rated pressure
- 1x 3/8"BSPF thread 90° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature
- 795 Bar test pressure

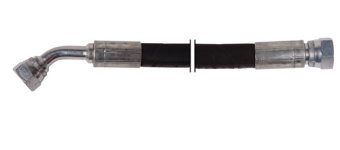

Part No: 399-1021
- 590mm - 2 wire rubber hose
- 400 Bar rated pressure
- 1x 3/8"BSPF thread 45° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature
- 795 Bar test pressure
Part No: 503-1056
- 770mm - 2 wire rubber hose
- 400 Bar rated pressure
- 1x 3/8"BSPF thread 90° port
- 1x 3/8"BSPF thread straight port
- 150°C max temperature
- 795 Bar test pressure

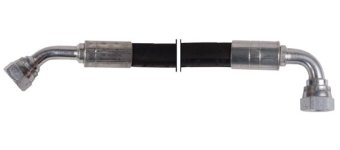

Part No: 503-1025
- 870mm - 2 wire rubber hose
- 400 Bar rated pressure
- 1x 3/8"BSPF thread 45° port
- 1x 3/8"BSPF thread 90° port
- 150°C max temperature
- 795 Bar test pressure

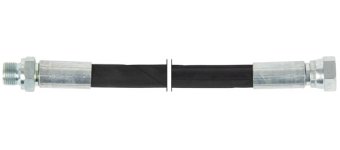

Part No: 503-1058
- 1m - 1 wire rubber hose
- 220 Bar max pressure
- 3/8"BSPF thread port
- 3/8"BSPM thread port
- Rated to 155°C

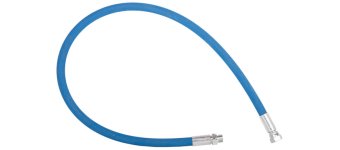

Part No: 503-2010
- 1m - 1 wire rubber hose
- Blue non-scuff construction
- 220 Bar max pressure
- 3/8"BSPF thread port
- 3/8"BSPM thread port
- Rated to 155°C
Part No: 503-2012
- 1m - 2 wire rubber hose
- Blue non-scuff construction
- 400 Bar max pressure
- 3/8"BSPF thread port
- 3/8"BSPM thread port
- Rated to 155°C
