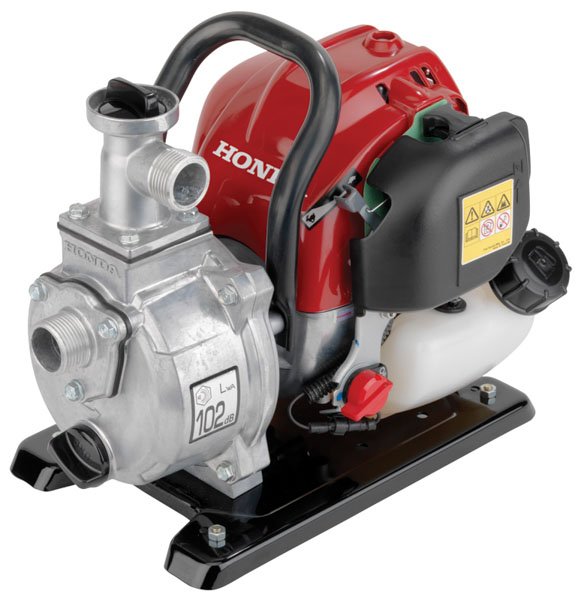

Honda WX10 Water Pump with Carry Handle

Part No: WX10
Sold As: EACH
  • 3.7 Bar max pressure
  • 37m max head
  • 120 Lpm max flow
  • Suction up to 8m (after priming)
  • Honda GX25 petrol engine
  • Aluminium body, BUNA seals
  • Baseplate with carry handle
  • 1" pump ports
  • Handles suspended solids up to 5.7mm
  • Cast iron volute & impeller
  • Silicon carbide mechanical seal
  • With port couplings & suction filter

Associated Products

1" Suction Filter & Hose Kit

Part No:
209-1021-6M

  • 6m 1" reinforced hose
  • Polyester foot filter

1" Suction Filter & Hose Kit

Part No:
209-1021-8M

  • 8m 1" reinforced hose
  • Polyester foot filter

Honda Foot Filter

Part No:
78325-YB0-711

  • 1" hose barb

Pressure Regulating Valve

Part No:
8384045

  • 4 Bar max pressure
  • 60°C max temperature

Bypass Valve Kit

Part No:
700-2125

  • 1/2" hose barb outlet

Bypass Valve Kit

Part No:
700-2126

  • 3/4" hose barb outlet

Bypass Valve Kit

Part No:
700-2127

  • 1" hose barb outlet

Honda Fuel Stabiliser

Part No:
08CXZFSC250

  • For GC & GX series engines

Flat Seat Hose Barb

Part No:
8003250

  • 25mm hose barb
  • For 1" flynut

90° Flat Seat Hose Barb

Part No:
8013250

  • 25mm hose barb
  • For 1" flynut

Flynut

Part No:
8040251

  • 1"BSP female thread
  • For 13-25mm hose barb

Gasket

Part No:
G00002006

  • 20mm i.d.
  • 30.7mm o.d.
