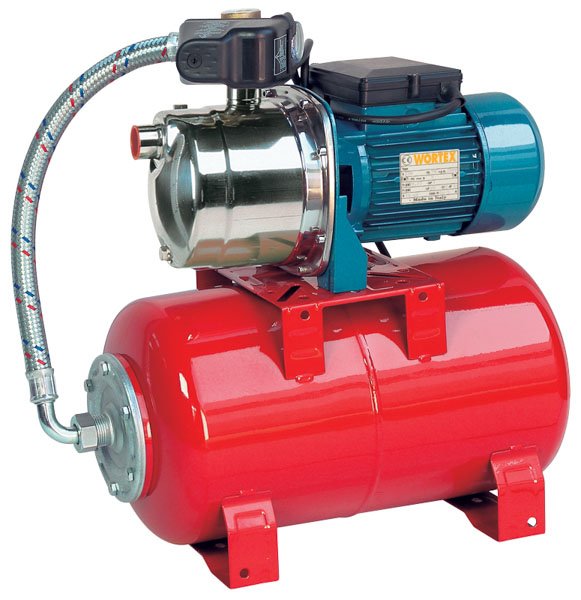

JX100-25 Booster Set

JX100-25 Booster Set

Part No: WP1192530

  • 46m max head
  • 50 Lpm max flow
  • Self-priming, suction up to 8m
  • 230 Volt - 1 Hp - 5 Amps
  • 25L butyl membrane tank
  • Gauge & adjustable pressure switch
  • Stainless steel body & flange
  • 1" female pump inlet
  • 1" female pump outlet
  • Ceramic graphite mechanical seal
  • Stainless steel impeller
  • Continuous duty

Associated Products

Nipple

Nipple

Part No:
1-73030

  • 1"BSP male thread
  • 1"BSP male thread

Pressure Tank Diaphragm

Pressure Tank Diaphragm

Part No:
290700001

    Italtecnica PM/5 Pressure Switch - 1 Phase

    Italtecnica PM/5 Pressure Switch - 1 Phase

    Part No:
    292000001

    • 1-5 Bar pressure
    • Single phase

    Flexible Hose

    Flexible Hose

    Part No:
    292500001

    • 500mm long

    Pressure Gauge

    Pressure Gauge

    Part No:
    293000002

    • 0-6 Bar

    Brass Non Return Valve

    Brass Non Return Valve

    Part No:
    407-1024

    • 1"BSP female threads

    SeaLand Jexi-100M Booster System

    SeaLand Jexi-100M Booster System

    Part No:
    251100056

    • 49m max head
    • 50 Lpm max flow

    Alternative Products

    SeaLand Jexi-100M Booster System

    SeaLand Jexi-100M Booster System

    Part No:
    251100056

    • 49m max head
    • 50 Lpm max flow
