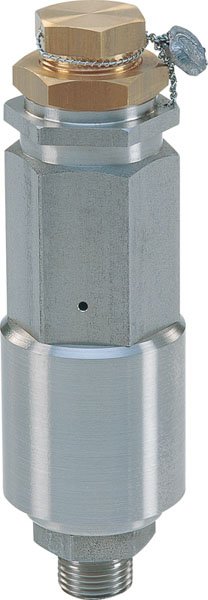

Pratissoli SX2 Safety Relief Valve - AISI 316

Pratissoli SX2 Safety Relief Valve - AISI 316

Part No: SX2/500

  • 500 Bar max working pressure
  • 600 Bar set pressure
  • 15-65 Lpm flow
  • AISI316 stainless steel
  • Factory set & sealed
  • NOT PED certified
  • 60°C max water temperature
  • 1/2"BSPM inlet
  • Call sales office for installation advice

Product Information

This valve is set for a system Working Pressure (WP) of 500 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 600 Bar.
