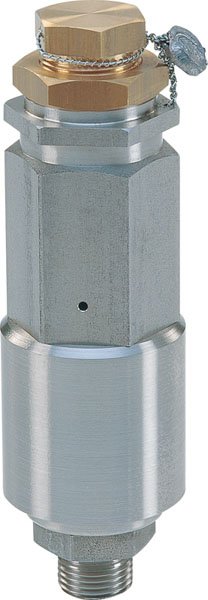

Pratissoli SX2 Safety Relief Valve - AISI 316

Pratissoli SX2 Safety Relief Valve - AISI 316

Part No: SX2/200

  • 200 Bar max working pressure
  • 240 Bar set pressure
  • 15-160 Lpm flow
  • AISI316 stainless steel
  • Factory set & sealed
  • NOT PED certified
  • 60°C max water temperature
  • 1/2"BSPM inlet
  • Call sales office for installation advice

Product Information

This valve is set for a system Working Pressure (WP) of 200 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 240 Bar.
