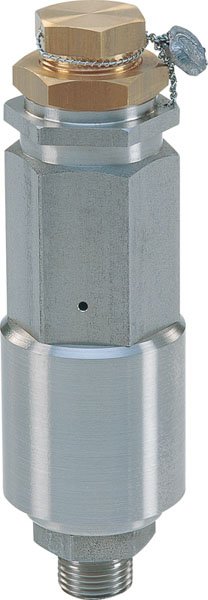

Pratissoli SX2 Safety Relief Valve - AISI 316

Pratissoli SX2 Safety Relief Valve - AISI 316

Part No: SX2/150

  • 150 Bar max working pressure
  • 180 Bar set pressure
  • 15-190 Lpm flow
  • AISI316 stainless steel
  • Factory set & sealed
  • NOT PED certified
  • 60°C max water temperature
  • 1/2"BSPM inlet
  • Call sales office for installation advice

Product Information

This valve is set for a system Working Pressure (WP) of 150 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 180 Bar.
