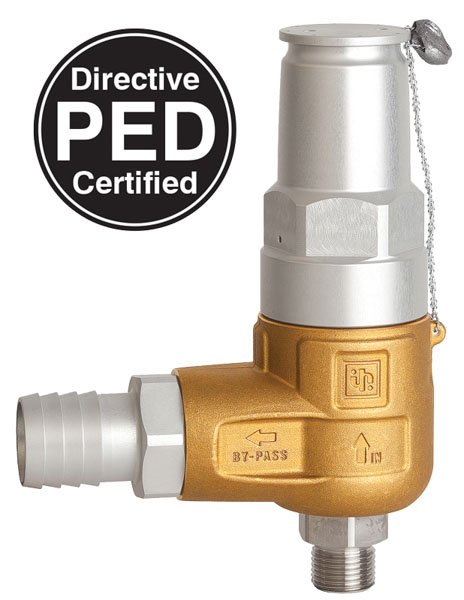

Pratissoli S723 Certified Safety Relief Valve
Part No: S723/500
- 500 Bar max working pressure
- 600 Bar set pressure
- 15-65 Lpm flow
- 85°C max water temperature
- Factory set & sealed
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals
- 1/2"BSPM inlet
- 30.4mm hose barb bypass
- Call sales office for installation advice
Product Information
This PED certified valve is set for a system Working Pressure (WP) of 500 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 600 Bar.
Each valve is issued with a dedicated certificate with a unique serial number affixed to the valve and manual. Generic calibration certificates cannot be supplied.
