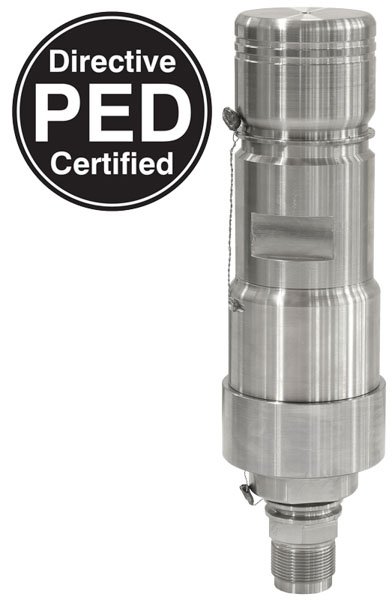

Pratissoli S4090 Certified Safety Relief Valve
Part No: S4090-350
- 350 Bar max working pressure
- 420 Bar set pressure
- 150-516 Lpm flow
- 85°C max water temperature
- Factory set & sealed to order
- PED certified to 97/23/CE cat. II
- Stainless steel construction
- 1"1/2BSPM inlet
- Call sales office for installation advice
Product Information
This PED certified valve is set for a system Working Pressure (WP) of 350 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 420 Bar.
Each valve is issued with a dedicated certificate with a unique serial number affixed to the valve and manual. Generic calibration certificates cannot be supplied.
