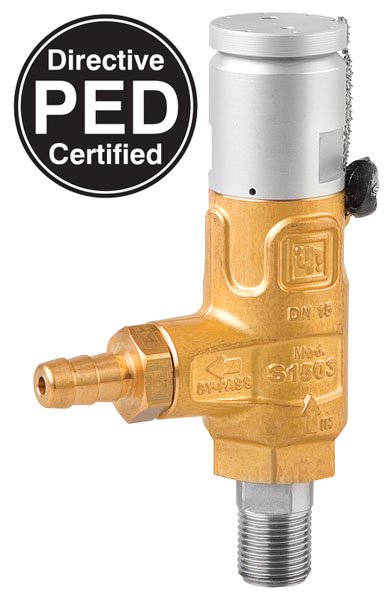

Pratissoli S1503 Safety Relief Valve
Part No: S1503/1100
- 600-1100 Bar working pressure
- 1320 Bar set pressure
- 10-28 Lpm flow
- 30°C max water temperature
- Factory set & sealed
- PED certified to 97/23/CE cat. II
- Brass body - St.steel internals
- 1/2"BSPM inlet
- 14mm hose barb outlet
- Call sales office for installation advice
Product Information
This PED certified valve is set for a system Working Pressure (WP) of 1100 Bar, the Set Pressure (SP) for the valve to activate and discharge flow is 1320 Bar.
Each valve is issued with a dedicated certificate with a unique serial number affixed to the valve and manual. Generic calibration certificates cannot be supplied.
