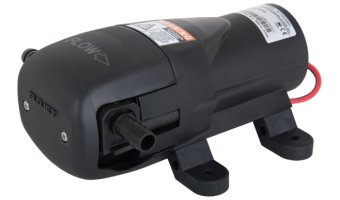

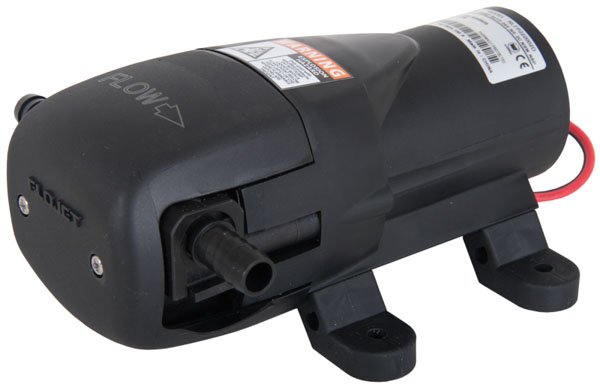

Flojet LF Series Demand Pump - 24V

Part No: RLFP222002D

  • No switch
  • 2.75 Bar max operating pressure
  • 3.8 Lpm max flow
  • No bypass
  • 24 Volt DC, 3.5A max
  • EPDM check valve
  • Santoprene diaphragm
  • 3/8" hose barb ports
  • Self-priming, up to 1.8m
  • Polypropylene housing
  • Intermittent duty cycle

Product Information

These pumps are the ideal solution for many applications including spraying, fluid transfer, filtration, cooling, dispensing and pressure boosting

Applications - General Industrial, Chemical washdown, Evaporative Cooling Systems, Fluid Transfer Automotive, Fluid Exchange, Agricultural, Fogging / Misting, Boom Sprayers, Beverage Dispense, Beverage Transfer

Additional pump models are available. Alternate barb sizes and tubing connection configurations are available. Please contact us if you do not see what you are looking for.

Associated Products

Flojet 1740 Series Inline Filter

Part No:
1740-003

  • 3/8" hose barb inlet
  • 3/8" hose barb outlet

Flojet Quick Connect Port Adaptor

Part No:
20325-031

  • 14mm QC x 3/8" hose barb
