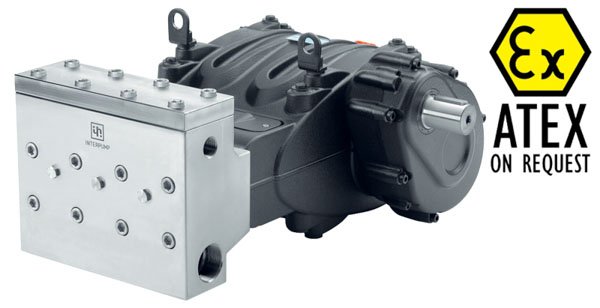

Pratissoli MWN HP Series Pump & 2200 Rpm Gearbox

Pratissoli MWN HP Series Pump & 2200 Rpm Gearbox

Part No: MWN32-GB22

  • 300 Bar
  • 135 Lpm
  • 2200 Rpm gearbox
  • 105 Hp, 77 kW
  • 50mm male shaft
  • Stainless steel block style manifold
  • 2.722:1 reduction gearbox
  • 60°C max water temperature
  • 2"BSP female inlet
  • 1"BSP female outlet
  • Call sales office for installation advice
