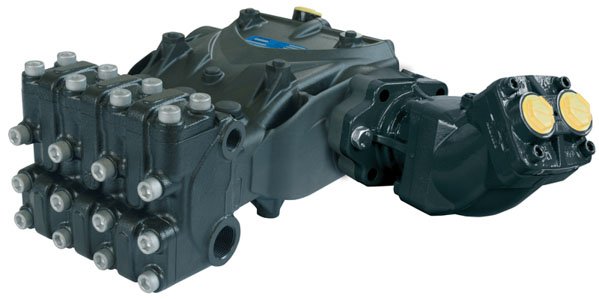

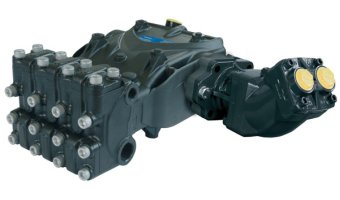

Pratissoli EV22 HYPACK Motorpump Unit

Pratissoli EV22 HYPACK Motorpump Unit

Part No: E4B1858-HYP47

  • 180 Bar max water pressure
  • 58 Lpm water flow @ 1450 Rpm
  • 70 Lpm water flow @ 1750 Rpm
  • 47cc piston motor
  • Oil flow 68 Lpm @ 1450 Rpm
  • Oil flow 82 Lpm @ 1750 Rpm
  • Oil 210 Bar
  • HR treated cast iron manifold
  • 40°C max water temperature
  • Other motor options available
  • Call sales office for installation advice

Associated Products

Pratissoli RPM Counter

Pratissoli RPM Counter

Part No:
ZRPM1

  • 12/24 Volt DC
