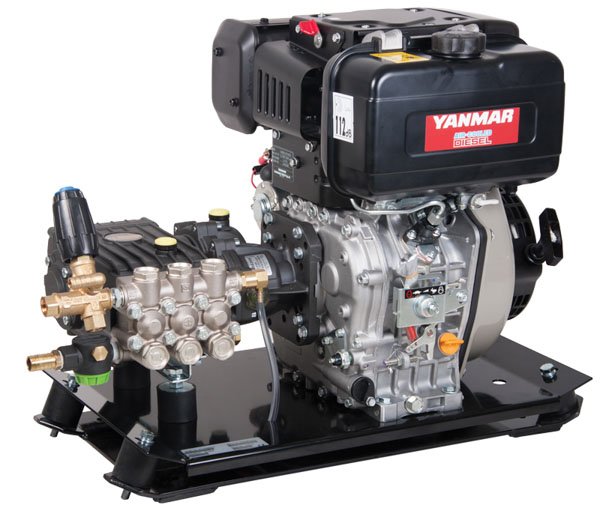

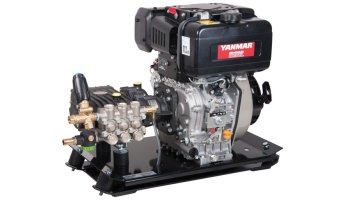

Yanmar/Interpump Diesel Engine Pump Unit

Yanmar/Interpump Diesel Engine Pump Unit

Part No: E100-1047

  • 100 Bar max pressure
  • 30 Lpm max flow
  • Yanmar L100V, electric start
  • Interpump WS1630 pump & gearbox
  • Mounted on heavy duty skid
  • 60°C max fluid temperature
  • Unloader valve - 3/8"BSPF outlet
  • Inline suction filter - 1" hose barb
  • Return to tank bypass - 15mm hose barb
  • Fitted with "Easystart" valve
  • 720L x 440W x 553H, mm 84Kg
  • Not supplied with battery/leads/lance/hoses
