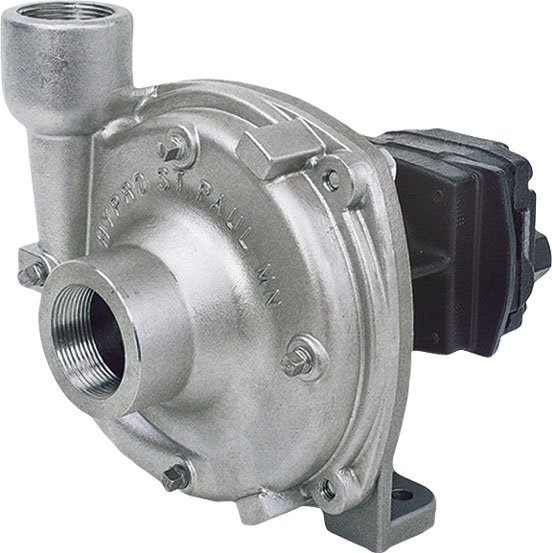

Hypro 9300 Series Pump

Part No: 9303S-HM4C
  • 6.4 Bar max pressure
  • 435 Lpm max flow
  • Non self-priming
  • Hydraulic motor driven
  • AISI 316 st.steel body, viton seals
  • 150 Bar max oil pressure
  • 26.5 Lpm max oil flow
  • 1"1/2 female pump inlet
  • 1"1/4 female pump outlet
  • Motor ports 1/2"NPTF in, 3/4"NPTF out
  • Carbon ceramic mechanical seal
  • Glass filled polypropylene impeller
