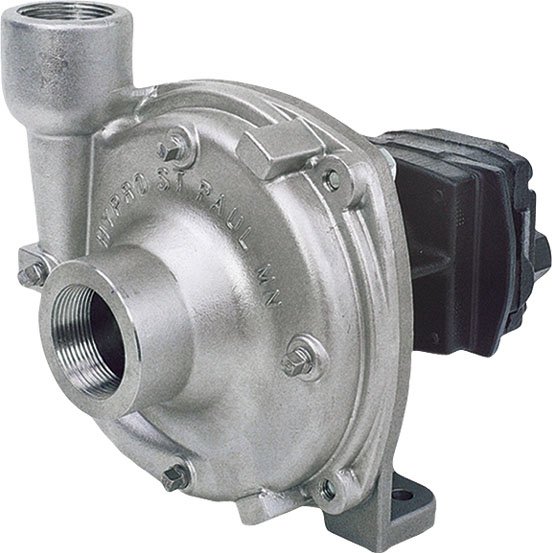

Hypro 9300 Series Pump

Hypro 9300 Series Pump

Part No: 9303S-HM1C

  • 8.9 Bar max pressure
  • 431 Lpm max flow
  • Non self-priming
  • Hydraulic motor driven
  • AISI 316 st.steel body, viton seals
  • 150 Bar max oil pressure
  • 49 Lpm max oil flow
  • 1"1/2 female pump inlet
  • 1"1/4 female pump outlet
  • Motor ports 1/2"NPTF in, 3/4"NPTF out
  • Carbon ceramic mechanical seal
  • Glass filled polypropylene impeller

Associated Products

Hypro 9300 Series Pump - Manifold Ports

Hypro 9300 Series Pump - Manifold Ports

Part No:
9303S-HM1C-U

  • 8.9 Bar max pressure
  • 431 Lpm max flow

Mechanical Seal Kit

Mechanical Seal Kit

Part No:
3430-0332

  • For 9303C/S pump

Hypro Vent Kit

Hypro Vent Kit

Part No:
3430-0456

    Impeller

    Impeller

    Part No:
    0402-9100P

      Heavy Duty Mechanical Seal Kit

      Heavy Duty Mechanical Seal Kit

      Part No:
      3430-0589

        2500 Series Hydraulic Motor Repair Kit

        2500 Series Hydraulic Motor Repair Kit

        Part No:
        3430-0748

        • For pre-2018 2500 Series hydraulic motors

        2540 Series Hydraulic Motor Repair Kit

        2540 Series Hydraulic Motor Repair Kit

        Part No:
        3430-0881

        • For post-2018 2540 Series hydraulic motors
