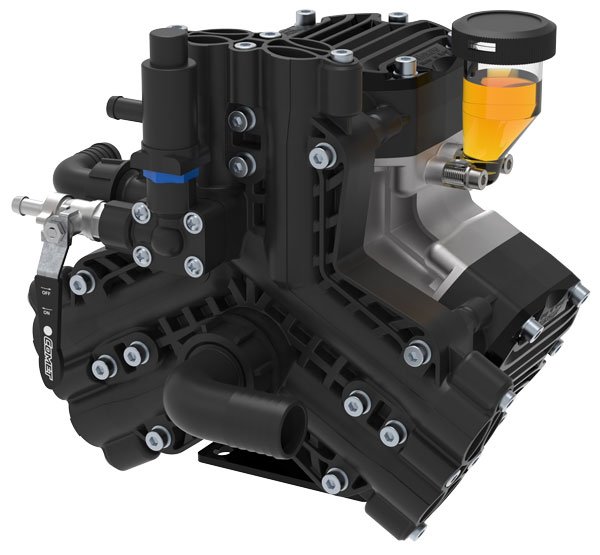

Comet MP55 3 Diaphragm Pump

Comet MP55 3 Diaphragm Pump

Part No: 6157000100

  • 30 Bar max
  • 54 Lpm max
  • 550 Rpm
  • 4.6 Hp, 3.44 kW
  • 6 hole flange for stub shaft
  • NBR diaphragms
  • With safety valve
  • Pump feet not supplied
  • 35mm hose barb inlet
  • 25mm hose barb outlet
  • 10mm hose barb dump outlet
  • 13mm hose barb safety valve bypass

Associated Products

Comet Reduction Gearbox

Comet Reduction Gearbox

Part No:
5005021600

  • To mount to 3/4" shaft engine

Comet Reduction Gearbox

Comet Reduction Gearbox

Part No:
5005021900

  • To mount to 90 frame motor

Comet Reduction Gearbox

Comet Reduction Gearbox

Part No:
5005021700

  • To mount to 100-112 frame motors

Comet 1"3/8 Cardan Shaft Kit

Comet 1"3/8 Cardan Shaft Kit

Part No:
5003000700

  • For MP20, MP30, APS31, APS41, APS51, APS71 pumps

Comet 30mm Cardan Shaft Kit

Comet 30mm Cardan Shaft Kit

Part No:
5003001400

  • For MP20, MP30, APS31, APS41, APS51, APS71 pumps

Diaphragm Pump Oil

Diaphragm Pump Oil

Part No:
199-2001

  • ISO 100 vacuum pump oil
  • 1 Litre
