04-Pumps » Diaphragm Pumps » Comet Diaphragm Pumps » Comet BP/BPS Series Pumps »

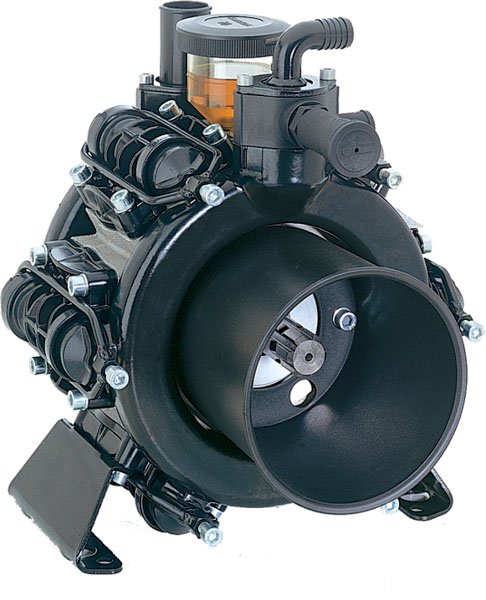

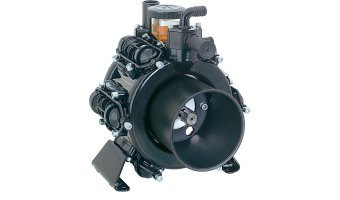

Comet BP235K 6 Diaphragm Pump

Comet BP235K 6 Diaphragm Pump

Part No: 6105003300

  • 20 Bar max
  • 226 Lpm max
  • 550 Rpm
  • 11.7 Hp, 8.6 kW
  • 1"3/8M splined x 30mm thru shaft
  • NBR diaphragms
  • Pump feet supplied
  • 45mm hose barb inlet
  • 25mm hose barb outlet

Associated Products

Comet GVS Safety Valve

Comet GVS Safety Valve

Part No:
1219004400

  • 20 Bar, green
  • Remote mount valve

1"3/8 Shaft Guard

1"3/8 Shaft Guard

Part No:
2416010000

    Comet PTO Guard

    Comet PTO Guard

    Part No:
    2416020500

      Comet PTO Guard

      Comet PTO Guard

      Part No:
      2416022600

        Comet GVS Safety Valve Assembly

        Comet GVS Safety Valve Assembly

        Part No:
        2803036500

        • 20 Bar, green
        • Direct pump mount kit

        Comet Hydraulic Motor Adaptor Kit

        Comet Hydraulic Motor Adaptor Kit

        Part No:
        5011019000

        • For motor with 25mm parallel shaft

        Comet Hydraulic Motor Adaptor Kit

        Comet Hydraulic Motor Adaptor Kit

        Part No:
        5011019800

        • For motor with 32mm parallel shaft

        Diaphragm Pump Oil

        Diaphragm Pump Oil

        Part No:
        199-2001

        • ISO 100 vacuum pump oil
        • 1 Litre

        Diaphragm

        Diaphragm

        Part No:
        1800000200

        • 112mm diameter
        • NBR

        Pressure Accumulator Diaphragm

        Pressure Accumulator Diaphragm

        Part No:
        1800003400

        • NBR

        Valve Spring

        Valve Spring

        Part No:
        1802024500
