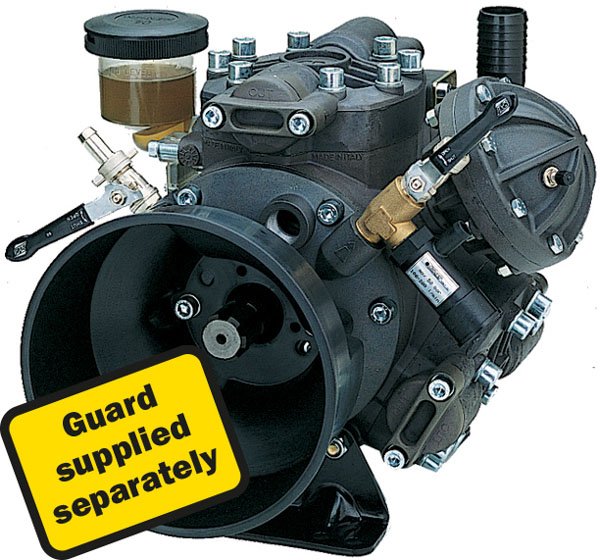

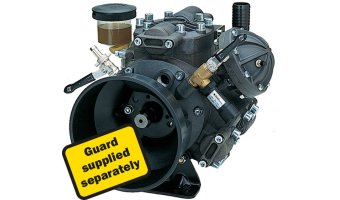

Comet APS101 3 Diaphragm Pump

Comet APS101 3 Diaphragm Pump

Part No: 6094001900

  • 50 Bar max
  • 100 Lpm max
  • 550 Rpm
  • 12.3 Hp, 9.0 kW
  • 1"3/8M x 1"3/8M 6 splined thru shaft
  • NBR diaphragms
  • With pressure accumulator & safety valve
  • Pump feet supplied
  • 40mm hose barb inlet
  • 2x 10mm hose barb outlet taps

Associated Products

Comet GCP3V Controlset

Comet GCP3V Controlset

Part No:
1204057000

  • 40 Bar
  • 100 Lpm

Comet HPR-2 Controlset

Comet HPR-2 Controlset

Part No:
1204057500

  • 50 Bar
  • 150 Lpm

Comet Safety Valve

Comet Safety Valve

Part No:
1219004100

  • 50 Bar, red

1"3/8 Shaft Guard

1"3/8 Shaft Guard

Part No:
2416010000

    Comet PTO Guard

    Comet PTO Guard

    Part No:
    2416027600

      Comet Controlset Adaptor

      Comet Controlset Adaptor

      Part No:
      2803004700

      • 3/4"BSP male thread

      Diaphragm Pump Oil

      Diaphragm Pump Oil

      Part No:
      199-2001

      • ISO 100 vacuum pump oil
      • 1 Litre

      Valve Assembly

      Valve Assembly

      Part No:
      1220003400

      • Supplied with O ring

      Diaphragm

      Diaphragm

      Part No:
      1800001200

      • 125mm diameter
      • NBR

      Pressure Accumulator Diaphragm

      Pressure Accumulator Diaphragm

      Part No:
      1800003400

      • NBR

      Spring

      Spring

      Part No:
      1802001500

      • E11 x 17
