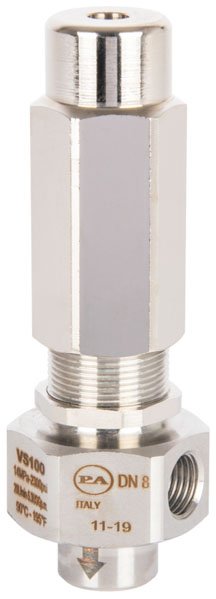

VS100 Pressure Relief Valve - AISI 316
Part No: 60.0470.60
- 125 Bar rated pressure
- 20 Lpm max flow
- 90°C rated water temperature
- Mount in line
- AISI 316L stainless steel
- Ceramic ball - Viton seals
- Not preset, see manual
- 1/4"BSPF ports
- 1/4"BSPF bypass
- Suitable for food industry
Product Information
The PA VS100 pressure relief valve can be mounted inline using one of the inlets as the high pressure outlet, alternatively one of the inlets can be blanked off and the valve mounted offline on a tee.
