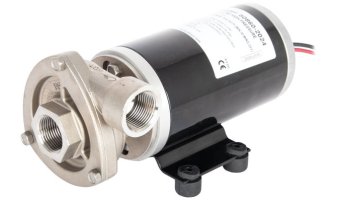

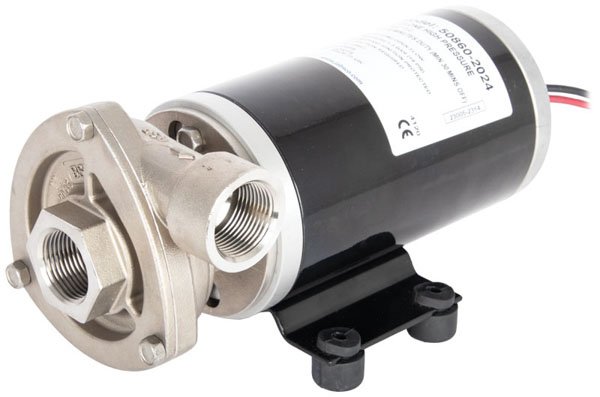

Jabsco 24VDC HP Cyclone Pump

Part No: 50860-2024

  • 1.3 Bar max pressure
  • 80 Lpm max flow
  • Non self-priming
  • 24 Volt DC 10.5 Amp electric motor
  • AISI316 stainless steel head
  • Nitrile seals
  • Anti-clog impeller
  • Primes up to 2m when wet
  • Intermittent rated
  • 3/4"BSP female ports
  • 4 to 95°C fluid temperature

Product Information

Jabsco Cyclone general purpose centrifugal pumps are engineered using 316 stainless steel and are ideal for engine cooling, closed-circuit circulation systems, LiveWell circulation, central heating, chemical transfer, calf feeding carts, dairy milk transfer, and other flooded suction applications.

The Jabsco Cyclone pumps offer brushed motors capable of 2,500-3,500 hours along with an anti-clog impeller that allows small debris to pass through the pump. If servicing or adjustment is necessary, only a 3/8" spanner is needed to remove the impeller to inspect the mechanical seal.

The Cyclone series of pumps can also handle seawater, fresh water, anti-freeze, mild chemicals, and bilge water, milk, and accepts fluid temperatures between 4ºC and 95ºC.
