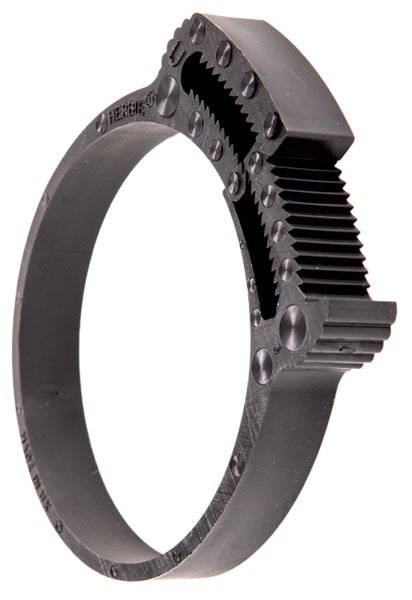

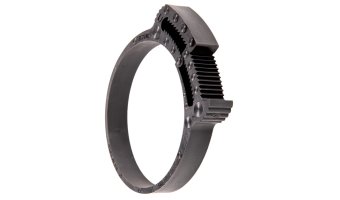

Herbie® Hose Clamp - Size S

Herbie® Hose Clamp - Size S

Part No: 502-1319

  • 40.7 - 44.3mm clamping range
  • 9.1mm band width
  • 2.1mm band thickness
  • 13.0mm head height
  • PA66 Nylon 6.6
  • Flammability - UL 94 V-2
  • Max long term operating temp. 125°C
  • Max peak operating temp. 170°C
  • RoHS compliant

Associated Products

Herbie® Clip Removal Tool

Herbie® Clip Removal Tool

Part No:
800-1000

  • For size A-163 Herbie® clips
