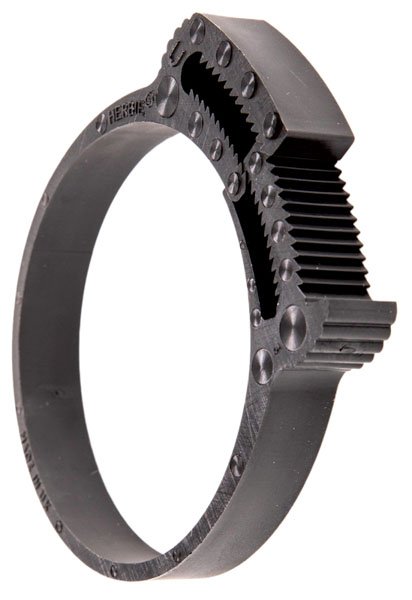

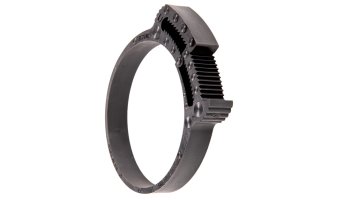

Herbie® Hose Clamp - Size M

Herbie® Hose Clamp - Size M

Part No: 502-1314

  • 26.4 - 29.9mm clamping range
  • 8.0mm band width
  • 2.2mm band thickness
  • 13.6mm head height
  • PA66 Nylon 6.6
  • Flammability - UL 94 V-2
  • Max long term operating temp. 125°C
  • Max peak operating temp. 170°C
  • RoHS compliant

Associated Products

Herbie® Clip Removal Tool

Herbie® Clip Removal Tool

Part No:
800-1000

  • For size A-163 Herbie® clips
