Fluid Handling Components » Fittings for Hose & Pipe » Clips & Sealant » HerbieŽ Hose Clamps - PA66 Nylon 6.6 »

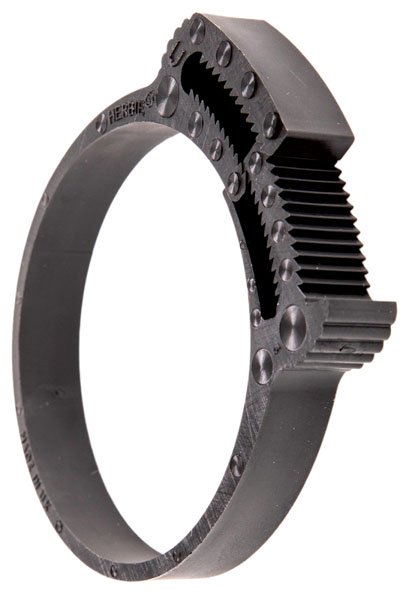

Herbie® Hose Clamp - Size G

Herbie® Hose Clamp - Size G

Part No: 502-1309

  • 17.0 - 19.4m clamping range
  • 7.0mm band width
  • 2.1mm band thickness
  • 12.7mm head height
  • PA66 Nylon 6.6
  • Flammability - UL 94 V-2
  • Max long term operating temp. 125°C
  • Max peak operating temp. 170°C
  • RoHS compliant

Associated Products

Herbie® Clip Removal Tool

Herbie® Clip Removal Tool

Part No:
800-1000

  • For size A-163 Herbie® clips
