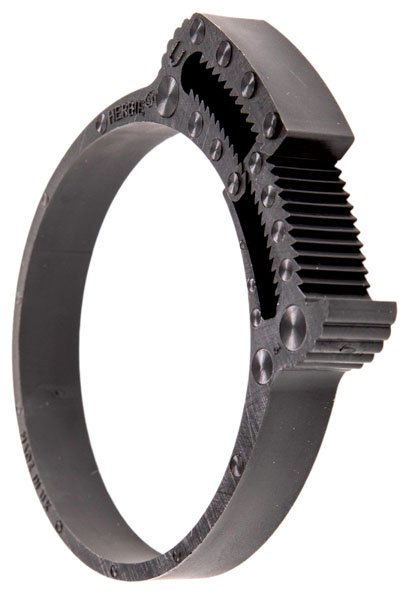

Herbie® Hose Clamp - Size D

Herbie® Hose Clamp - Size D

Part No: 502-1306

  • 12.3 - 14.2mm clamping range
  • 5.9mm band width
  • 1.7mm band thickness
  • 12.2mm head height
  • PA66 Nylon 6.6
  • Flammability - UL 94 V-2
  • Max long term operating temp. 125°C
  • Max peak operating temp. 170°C
  • RoHS compliant

Associated Products

Herbie® Clip Removal Tool

Herbie® Clip Removal Tool

Part No:
800-1000

  • For size A-163 Herbie® clips
