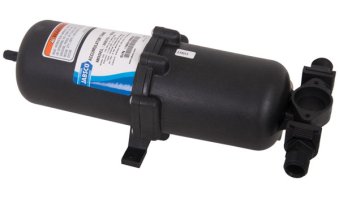

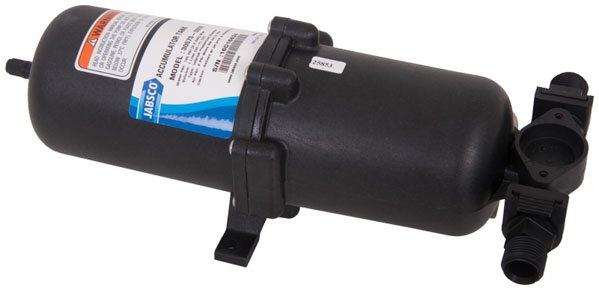

Accumulator Tank w/ Membrane
Part No: 30573-0000
- 1L nominal volume
- 0.5L working capacity
- 125psi max water pressure
- Plastic vessel w/ nitrile membrane
- 1/2" threaded ports
- Supplied w/ 13mm hose barbs
- Set air pressure to 2psi...
- ...above switch cut in setting
- 340L x 120W x 110D, mm - 0.8 Kg
This Accumulator Tank is intended for installation in any pumped water system controlled by a pressure switch. For example, PAR-MATE 2.5 or any Jabsco pressure pumps as found in boats, RV's, motor caravans, coaches and similar applications.
The Accumulator Tank smooths water flow and reduces on/off cycling of the pump by lessening the variation in pressure and flow between the pump and the outlets in the system.
The even flow of water gives better control of hot water temperature especially noticeable with instantaneous gas water heaters and with showers.
The reduced on/off cycling reduces noise from the pump motor, and from shock pressures (pipe hammer). It also reduces battery drain, and gives longer pump life.
