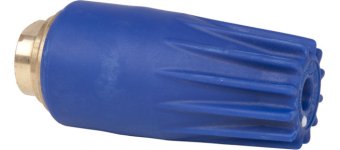

UR25 Rotating Turbo Nozzles
Part No: 25.1620.20
- 250 Bar rated pressure
- 7.5 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 020 nozzle
- Brass body
Part No: 25.1620.30
- 250 Bar rated pressure
- 11 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 030 nozzle
- Brass body
Part No: 25.1620.35
- 250 Bar rated pressure
- 13 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 035 nozzle
- Brass body
Part No: 25.1620.40
- 250 Bar rated pressure
- 15 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 040 nozzle
- Brass body
Part No: 25.1620.45
- 250 Bar rated pressure
- 16.5 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 045 nozzle
- Brass body
Part No: 25.1620.50
- 250 Bar rated pressure
- 18 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 050 nozzle
- Brass body
Part No: 25.1620.55
- 250 Bar rated pressure
- 20 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 055 nozzle
- Brass body
Part No: 25.1620.60
- 250 Bar rated pressure
- 22 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 060 nozzle
- Brass body
Part No: 25.1620.65
- 250 Bar rated pressure
- 23.5 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 065 nozzle
- Brass body
Part No: 25.1620.70
- 250 Bar rated pressure
- 25.5 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 070 nozzle
- Brass body
Part No: 25.1620.80
- 250 Bar rated pressure
- 29 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 080 nozzle
- Brass body
Part No: 25.1620.90
- 250 Bar rated pressure
- 33.5 Lpm max flow
- 100°C rated temperature
- 1/4"BSPF inlet
- 090 nozzle
- Brass body
