Test Point Adaptors

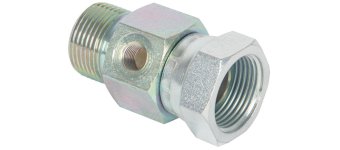

1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2421
  • 1/8"BSPM x 1/8"BSPF threads
  • 1/8"BSPF test point
  • 350 Bar working pressure
  • 525 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

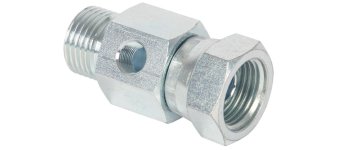

1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2422
  • 1/4"BSPM x 1/4"BSPF threads
  • 1/8"BSPF test point
  • 450 Bar working pressure
  • 675 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

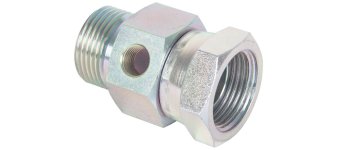

1/4" Threaded Test Point Adaptor
1/4" Threaded Test Point Adaptor
Part No: 501-2430
  • 1/4"BSPM x 1/4"BSPF threads
  • 1/4"BSPF test point
  • 450 Bar working pressure
  • 675 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

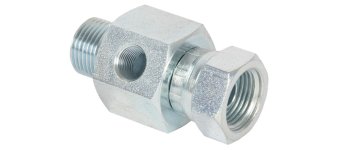

1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2423
  • 3/8"BSPM x 3/8"BSPF threads
  • 1/8"BSPF test point
  • 380 Bar working pressure
  • 570 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

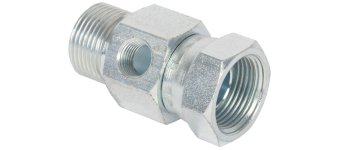

1/4" Threaded Test Point Adaptor
1/4" Threaded Test Point Adaptor
Part No: 501-2431
  • 3/8"BSPM x 3/8"BSPF threads
  • 1/4"BSPF test point
  • 380 Bar working pressure
  • 570 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

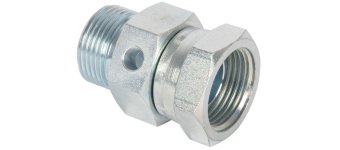

1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2424
  • 1/2"BSPM x 1/2"BSPF threads
  • 1/8"BSPF test point
  • 310 Bar working pressure
  • 465 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

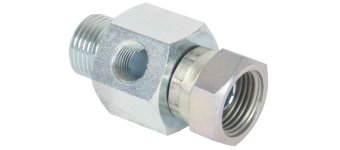

1/4" Threaded Test Point Adaptor
1/4" Threaded Test Point Adaptor
Part No: 501-2432
  • 1/2"BSPM x 1/2"BSPF threads
  • 1/4"BSPF test point
  • 310 Bar working pressure
  • 465 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)

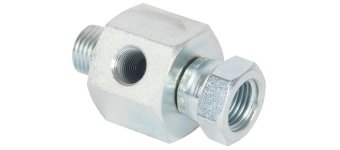

1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2425
  • 3/4"BSPM x 3/4"BSPF threads
  • 1/8"BSPF test point
  • 240 Bar working pressure
  • 360 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)
1/4" Threaded Test Point Adaptor
1/4" Threaded Test Point Adaptor
Part No: 501-2433
  • 3/4"BSPM x 3/4"BSPF threads
  • 1/4"BSPF test point
  • 240 Bar working pressure
  • 360 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)
1/8" Threaded Test Point Adaptor
1/8" Threaded Test Point Adaptor
Part No: 501-2426
  • 1"BSPM x 1"BSPF threads
  • 1/8"BSPF test point
  • 210 Bar working pressure
  • 315 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)
1/4" Threaded Test Point Adaptor
1/4" Threaded Test Point Adaptor
Part No: 501-2434
  • 1"BSPM x 1"BSPF threads
  • 1/4"BSPF test point
  • 210 Bar working pressure
  • 315 Bar proof pressure
  • Plated steel hydraulic fitting
  • 60° cone (BS5200)
