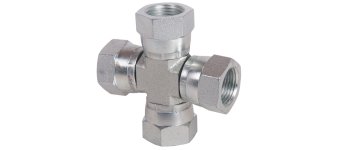

Female Threaded Swivel Crosses
Part No: 501-2220
- 4x 1/4"BSP female threads
- 450 Bar working pressure
- 675 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2221
- 4x 3/8"BSP female threads
- 380 Bar working pressure
- 570 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2222
- 4x 1/2"BSP female threads
- 310 Bar working pressure
- 465 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2223
- 4x 3/4"BSP female threads
- 240 Bar working pressure
- 360 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2224
- 4x 1"BSP female threads
- 210 Bar working pressure
- 315 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
