Pressure Regulating Valves - Up to 1500 Bar
Part No: 4072000099
- 25-150 Bar rated pressure
- 25 Lpm max flow
- 90°C rated water temperature
- Mount off line on a tee
- Brass body
- Stainless steel internals
Part No: 0215010230
- 25-250 Bar rated pressure
- 25 Lpm max flow
- 90°C rated water temperature
- Mount off line on a tee
- Brass body
- Stainless steel internals
Part No: 4072000100
- 25-150 Bar rated pressure
- 25 Lpm max flow
- 90°C rated water temperature
- Mount in line
- Brass body
- Stainless steel internals
Part No: 60.0525.00
- 22-220 Bar rated pressure
- 24 Lpm max flow
- 90°C rated water temperature
- Mount in line
- Brass body - St.steel internals
- Not preset, see manual
Part No: 0215010200
- 25-250 Bar rated pressure
- 25 Lpm max flow
- 90°C rated water temperature
- Mount in line
- Brass body
- Stainless steel internals
Part No: SX1
- 250 Bar max pressure
- 60 Lpm max flow
- 85°C max water temperature
- AISI 316L stainless steel
- Not preset
- 1/2"BSPF inlet
Part No: 0215010420
- 36-360 Bar rated pressure
- 25 Lpm max flow
- 90°C rated water temperature
- Mount in line
- Brass body
- Stainless steel internals

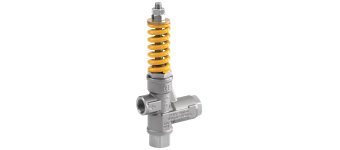

Part No: 4072300000
- 160 Bar rated pressure
- 30 Lpm max flow
- 90°C rated water temperature
- Aisi 303 stainless steel
- Yellow spring, no regulator knob
- Can also be used as safety valve

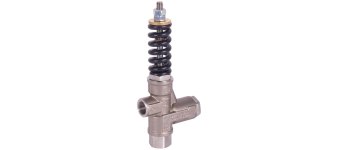

Part No: 4072300001
- 280 Bar rated pressure
- 30 Lpm max flow
- 90°C rated water temperature
- Aisi 303 stainless steel
- Black spring, no regulator knob
- Can also be used as safety valve
Part No: TIMAX
- 60 Bar max pressure
- 200 Lpm max flow
- 60°C max water temperature
- Manual bypass lever
- Brass body - St.steel internals
- 3/4"BSPF inlet
Part No: TIMAX100
- 100 Bar max pressure
- 200 Lpm max flow
- 60°C max water temperature
- Manual bypass lever
- Brass body - St.steel internals
- 3/4"BSPF inlet
Part No: 60.5100.15
- 200 Bar rated pressure
- 200 Lpm max flow
- 90°C rated temperature
- Mount off line on a tee
- Brass body - St.steel internals
- Not preset, see manual
