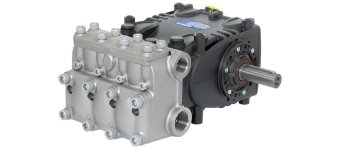

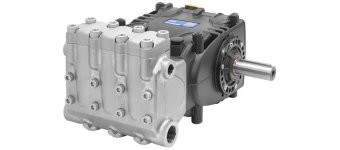

Pratissoli KT Series Pumps
Part No: KT16
- 500 Bar
- 22 Lpm @ 1450 Rpm
- 27 Lpm @ 1750 Rpm
- 30 Hp, 22.4 kW
- 36 Hp, 26.2 kW
- 30mm male shaft
Part No: KT19
- 500 Bar @ 1450 Rpm
- 400 Bar @ 1750 Rpm
- 30 Lpm @ 1450 Rpm
- 36 Lpm @ 1750 Rpm
- 39 Hp, 28.7 kW @ 1450 Rpm
- 38 Hp, 27.9 kW @ 1750 Rpm
Part No: KT20
- 400 Bar @ 1450 Rpm
- 320 Bar @ 1750 Rpm
- 36 Lpm @ 1450 Rpm
- 43 Lpm @ 1750 Rpm
- 37 Hp, 27.2 kW @ 1450 Rpm
- 36 Hp, 26.5 kW @ 1750 Rpm
Part No: KT22
- 320 Bar @ 1450 Rpm
- 250 Bar @ 1750 Rpm
- 43 Lpm @ 1450 Rpm
- 52 Lpm @ 1750 Rpm
- 36 Hp, 26.5 kW @ 1450 Rpm
- 34 Hp, 24.8 kW @ 1750 Rpm
Part No: KT24
- 250 Bar @ 1450 Rpm
- 200 Bar @ 1750 Rpm
- 51 Lpm @ 1450 Rpm
- 62 Lpm @ 1750 Rpm
- 33 Hp, 24.3 kW @ 1450 Rpm
- 32 Hp, 23.6 kW @ 1750 Rpm
Part No: KT26
- 250 Bar
- 60 Lpm
- 1450 Rpm
- 39 Hp, 28.6 kW
- 30mm male shaft
- HR treated cast iron manifold
Part No: KT28
- 200 Bar @ 1450 Rpm
- 175 Bar @ 1750 Rpm
- 70 Lpm @ 1450 Rpm
- 84 Lpm @ 1750 Rpm
- 36 Hp, 26.5 kW @ 1450 Rpm
- 38 Hp, 28.0 kW @ 1750 Rpm
Part No: KT30
- 175 Bar @ 1450 Rpm
- 140 Bar @ 1750 Rpm
- 80 Lpm @ 1450 Rpm
- 96 Lpm @ 1750 Rpm
- 36 Hp, 26.5 kW @ 1450 Rpm
- 35 Hp, 25.5 kW @ 1750 Rpm
Part No: KT32
- 150 Bar
- 91 Lpm
- 1450 Rpm
- 35 Hp, 25.8 kW
- 30mm male shaft
- HR treated cast iron manifold
Part No: KT34
- 150 Bar
- 103 Lpm
- 1450 Rpm
- 40 Hp, 29.5 kW
- 30mm male shaft
- HR treated cast iron manifold
Part No: KT36
- 120 Bar @ 1450 Rpm
- 125 Bar @ 1580 Rpm
- 115 Lpm @ 1450 Rpm
- 125 Lpm @ 1580 Rpm
- 36 Hp, 26.5 kW @ 1450 Rpm
- 41 Hp, 29.9 kW @ 1580 Rpm
Part No: KT40
- 100 Bar
- 142 Lpm
- 1450 Rpm
- 36.8 Hp, 27.1 kW
- 30mm male shaft
- HR treated cast iron manifold
