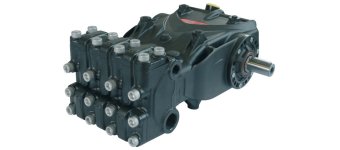

Pratissoli EV Series Pumps
Part No: E4B2548
- 250 Bar - 48 Lpm @ 1450 Rpm
- 250 Bar - 58 Lpm @ 1750 Rpm
- 31.2 Hp, 22.9 kW @ 1450 Rpm
- 38.0 Hp, 27.6 kW @ 1750 Rpm
- 28mm male shaft
- HR treated cast iron manifold
Part No: E4B1858
- 180 Bar - 58 Lpm @ 1450 Rpm
- 180 Bar - 70 Lpm @ 1750 Rpm
- 27.0 Hp, 19.9 kW @ 1450 Rpm
- 33.0 Hp, 24.1 kW @ 1750 Rpm
- 28mm male shaft
- HR treated cast iron manifold
Part No: E4B1575
- 150 Bar - 75 Lpm @ 1450 Rpm
- 150 Bar - 90 Lpm @ 1750 Rpm
- 29.0 Hp, 21.5 kW @ 1450 Rpm
- 35.0 Hp, 25.8 kW @ 1750 Rpm
- 28mm male shaft
- HR treated cast iron manifold
Part No: E4B1381
- 130 Bar - 81 Lpm @ 1450 Rpm
- 130 Bar - 98 Lpm @ 1750 Rpm
- 27.0 Hp, 20.1 kW @ 1450 Rpm
- 33.0 Hp, 24.3 kW @ 1750 Rpm
- 28mm male shaft
- HR treated cast iron manifold
Part No: E4B1294
- 120 Bar - 94 Lpm @ 1450 Rpm
- 29.0 Hp, 21.5 kW @ 1450 Rpm
- 1450 Rpm max speed
- 28mm male shaft
- HR treated cast iron manifold
- 40°C max water temperature
