Pressure Regulating Valves
<
1 of 2
>
Part No: TIMAX100
- 100 Bar max pressure
- 200 Lpm max flow
- 60°C max water temperature
- Manual bypass lever
- Brass body - St.steel internals
- 3/4"BSPF inlet

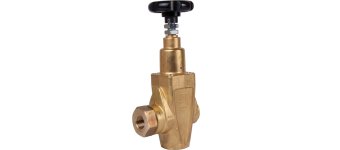

Part No: R2
- 210 Bar max pressure
- 230 Lpm flow
- 85°C max water temperature
- Pressure adjusting knob
- Brass body
- 1"BSPF inlet

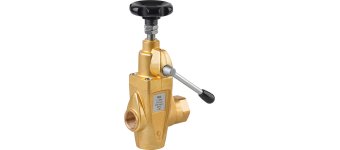

Part No: R2L
- 210 Bar max pressure
- 230 Lpm flow
- 85°C max water temperature
- Pressure adjusting knob
- Manual bypass lever
- Brass body

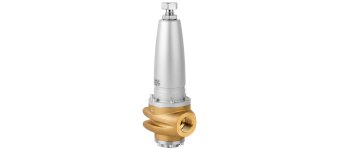

Part No: R3-LP
- 230 Bar max pressure
- 500 Lpm flow
- 85°C max water temperature
- Brass body - St.steel internals
- 1"1/4BSPF inlet
- 1"1/4BSPF bypass
Part No: R3-HP
- 450 Bar max pressure
- 340 Lpm flow
- 85°C max water temperature
- Brass body - St.steel internals
- 1"BSPF inlet
- 1"BSPF bypass

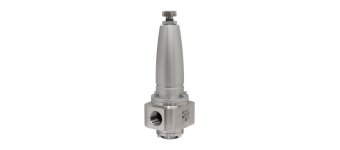

Part No: R3X-LP
- 230 Bar max pressure
- 500 Lpm flow
- 85°C max water temperature
- AISI316 stainless steel
- 1"1/4BSPF inlet
- 1"1/4BSPF bypass
Part No: R3X-HP
- 450 Bar max pressure
- 340 Lpm flow
- 85°C max water temperature
- AISI316 stainless steel
- 1"BSPF inlet
- 1"BSPF bypass

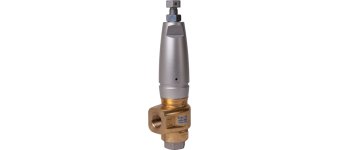

Part No: R1/200
- 200 Bar max pressure
- 110 Lpm flow
- 85°C max water temperature
- Brass body - St.steel internals
- 3/4"BSPF inlet
- 3/4"BSPF bypass
Part No: R1/400
- 400 Bar max pressure
- 110 Lpm flow
- 85°C max water temperature
- Brass body - St.steel internals
- 3/4"BSPF inlet
- 3/4"BSPF bypass
Part No: R1/600
- 600 Bar max pressure
- 70 Lpm flow
- 85°C max water temperature
- Brass body - St.steel internals
- 3/4"BSPF inlet
- 3/4"BSPF bypass

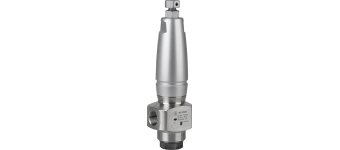

Part No: R1X/200
- 200 Bar max pressure
- 110 Lpm flow
- 85°C max water temperature
- AISI316 stainless steel
- 3/4"BSPF inlets
- 3/4"BSPF bypass
Part No: R1X/400
- 400 Bar max pressure
- 110 Lpm flow
- 85°C max water temperature
- AISI316 stainless steel
- 3/4"BSPF inlets
- 3/4"BSPF bypass
<
