02-Suppliers & Applications » Products by Supplier » Mosmatic Products » Mosmatic High Speed Swivels & Rotary Heads »

Mosmatic DGL Series Swivels

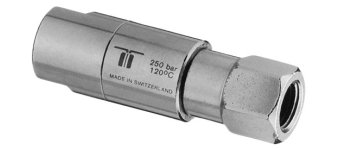

Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.001
  • 1/4"BSPF inlet
  • 1/4"BSPM outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body

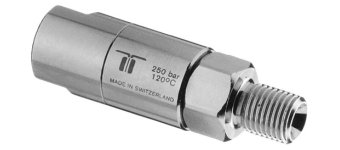

Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.002
  • 1/4"BSPF inlet
  • 1/4"BSPF outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body
Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.003
  • 1/4"BSPF inlet
  • 3/8"BSPM outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body
Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.101
  • 3/8"BSPF inlet
  • 1/4"BSPM outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body
Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.103
  • 3/8"BSPF inlet
  • 3/8"BSPM outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body
Mosmatic DGL Triple Bearing Swivel
Mosmatic DGL Triple Bearing Swivel
Part No: 31.104
  • 3/8"BSPF inlet
  • 3/8"BSPF outlet
  • 275 Bar max pressure
  • 30 Rpm max @ 120°C
  • 1000 Rpm max @ 30°C
  • Nickel plated brass body
