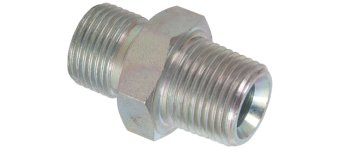

BSP x BSP Taper Male Threaded Nipples
Part No: 501-2249
- 1/8"BSP male thread
- 1/4"BSPT male thread
- 450 Bar max pressure
- 675 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
Part No: 501-2250
- 1/4"BSP male thread
- 1/4"BSPT male thread
- 450 Bar max pressure
- 675 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
Part No: 501-2251
- 3/8"BSP male thread
- 3/8"BSPT male thread
- 380 Bar max pressure
- 570 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
Part No: 501-2252
- 1/2"BSP male thread
- 1/2"BSPT male thread
- 310 Bar max pressure
- 465 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
Part No: 501-2253
- 3/4"BSP male thread
- 3/4"BSPT male thread
- 240 Bar max pressure
- 360 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
Part No: 501-2254
- 1"BSP male thread
- 1"BSPT male thread
- 210 Bar max pressure
- 315 Bar proof pressure
- Plated steel construction
- 60° cone (BS5200)
